74HC Family Inverters & Buffers, Nexperia
A range of NXP Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

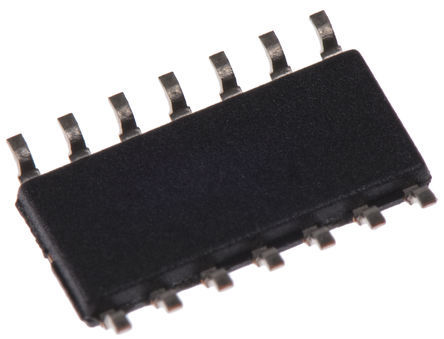

74HC04D,653 Hex Inverter, 14-Pin SO
Manufacturer:
Nexperia
Manufacturer Part No:
74HC04D,653
Enrgtech Part No:
ET16799178
Warranty:
Manufacturer
£ 0.06
Checking for live stock
Logic Function:
Inverter
Input Type:
CMOS
Output Type:
Open Drain
Number of Elements per Chip:
6
Maximum Propagation Delay Time @ Maximum CL:
130 ns @ 15 pF
Maximum High Level Output Current:
-5.2mA
Maximum Low Level Output Current:
5.2mA
Mounting Type:
Surface Mount
Package Type:
SO
Pin Count:
14
Logic Family:
74HC
Dimensions:
8.75 x 4 x 1.45mm
