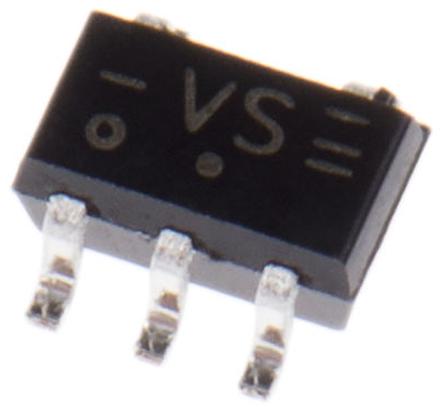

74LVC1G14GW,125 Schmitt Trigger Inverter, 5-Pin TSSOP

Logic Function:

Inverter

Input Type:

Schmitt Trigger

Number of Elements per Chip:

1

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

2.2 ns @ 5 V, 3 ns @ 3.3 V, 3.2 ns @ 2.7 V

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

5

Logic Family:

LVC

Dimensions:

2.25 x 1.35 x 1mm

Height:

1mm

Maximum Operating Supply Voltage:

5.5 V

Length:

2.25mm

Minimum Operating Supply Voltage:

1.65 V

Width:

1.35mm

Maximum Operating Temperature:

+125 °C

Propagation Delay Test Condition:

50pF

Minimum Operating Temperature:

-40 °C
