35-314-131-S-901
The TE Connectivity Manually operated battery disconnector up to 400 amps meets the most demanding requirements in all vehicle applications. The nominal current ratings refer to continuous DC current at up to 100% duty cycle and the switches are built to switch under full load.
Robust design
6G shock and 4G vibration resistant
Sealed housing conforms to IP6K9K
Battery disconnection under load in case of an emergency
6G shock and 4G vibration resistant
Sealed housing conforms to IP6K9K
Battery disconnection under load in case of an emergency

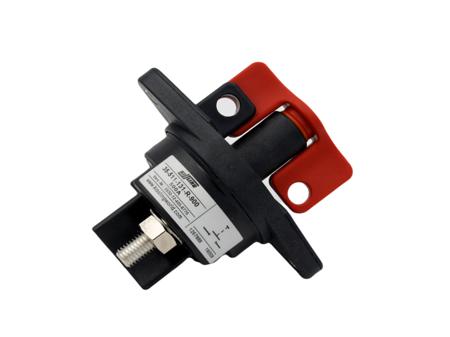

1 Pole Flange Switch Disconnector - 300A Maximum Current, IP6K9, IP67
Manufacturer:
TE ConnectivityManufacturer Part No:
35-314-131-S-901
Enrgtech Part No:
ET28315577
Warranty:
Manufacturer
£ 67.70
Checking for live stock
Number of Poles:
1
Maximum Current:
300A
Mounting Type:
Flange
IP Rating:
IP6K9, IP67
Voltage Rating:
32V dc
Handle Colour:
Black
Model Number:
35-314-131-S-901
Series:
KISSLING Series 35
Auxiliary Contacts Available:
No
Switch Rating:
300A
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
