CH Products BF/BD Series Paddle Controllers
The CH Products BF/BD series of paddle controllers are high precision, contactless controls combining the features of a contactless single axis joystick and a switch. The BF/BD series paddle controllers feature the Hall effect within an innovative design and ergonomic styling achieving robustness, strength and performance.
Features & Benefits
Hall effect joystick and switch function
Sculpted ergonomic design
Next generation Hall effect technology
5 V operation - dual redundant outputs as standard
Industry standard connector
IP67 sealed
EMC and magnetically shielded - analogue or PWM outputs
Effectively zero below panel depth
End stackable mounting
Sculpted ergonomic design
Next generation Hall effect technology
5 V operation - dual redundant outputs as standard
Industry standard connector
IP67 sealed
EMC and magnetically shielded - analogue or PWM outputs
Effectively zero below panel depth
End stackable mounting

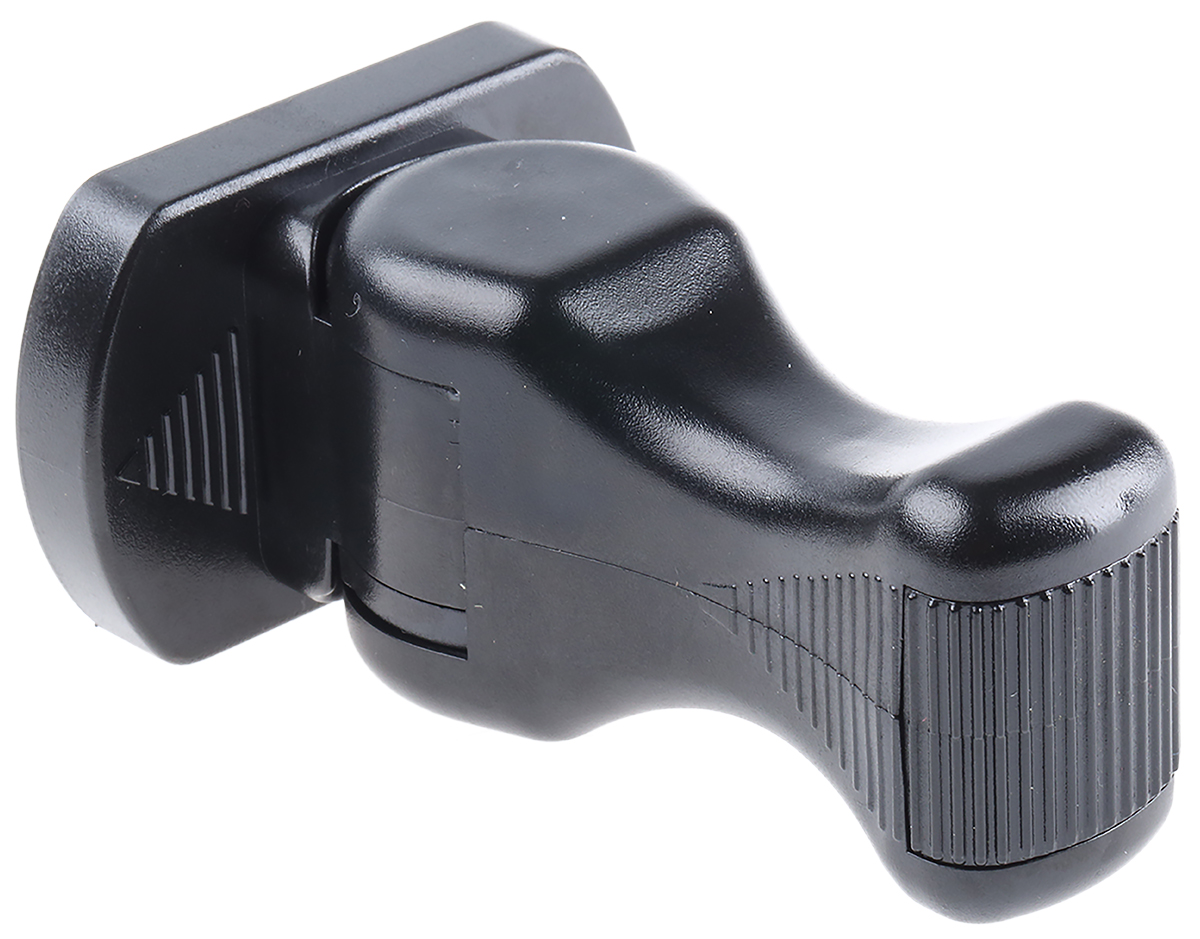

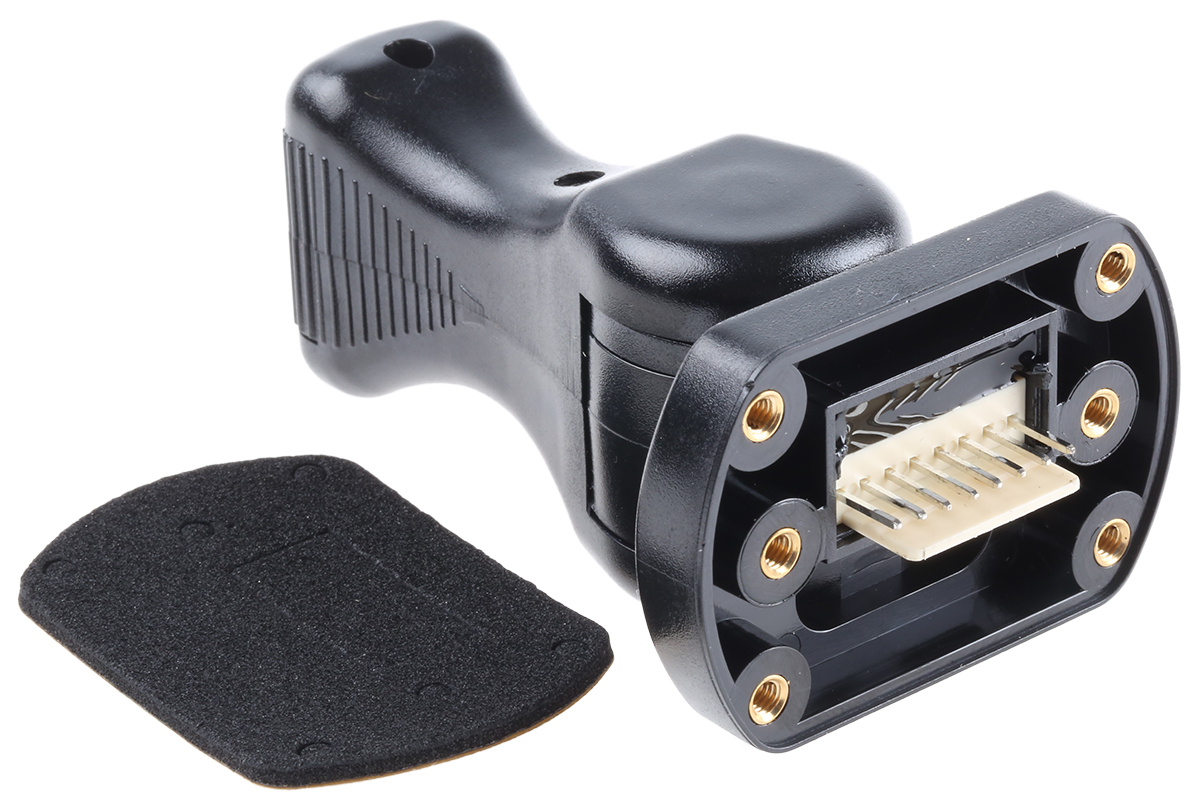

1-Axis Joystick Switch Lever, Hall Effect, IP67 5V
Manufacturer:
APEM
Manufacturer Part No:
BF240D03BK1200
Enrgtech Part No:
ET13881809
Warranty:
Manufacturer
£ 100.74
Checking for live stock
Number of Axes:
1
Switch Technology:
Hall Effect
IP Rating:
IP67
Handle Type:
Lever
Contact Voltage Rating:
5V
Joystick Travel:
±25 °
Terminal Type:
Through Hole
Mechanical Life:
2000000Cycles
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+70°C
Operating Temperature Range:
-25 → +70°C
