APEM Joystick Paddle Controller
The APEM 1 way paddle controller has an operating life of 5000000 cycles and contact electric current rating of 20mA and voltage rating of 5V. It combines the features of a contactless single axis joystick and a switch in one control. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analogue, switched or custom PWM output options. The all-new design with its innovative mechanism and ergonomic styling is specifically designed for robustness, strength and performance.
Features and Benefits
Terminal type is through-hole
Hall effect joystick and switch function
Sculpted ergonomic design
Next-generation hall effect technology
Industry-standard connector
EMC and magnetically shielded - Analogue or PWM outputs
Effectively zero below panel depth
End stackable mounting
Operating temperature ranges between -25℃ and 70℃ Certifications IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP67 rated
Hall effect joystick and switch function
Sculpted ergonomic design
Next-generation hall effect technology
Industry-standard connector
EMC and magnetically shielded - Analogue or PWM outputs
Effectively zero below panel depth
End stackable mounting
Operating temperature ranges between -25℃ and 70℃ Certifications IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP67 rated

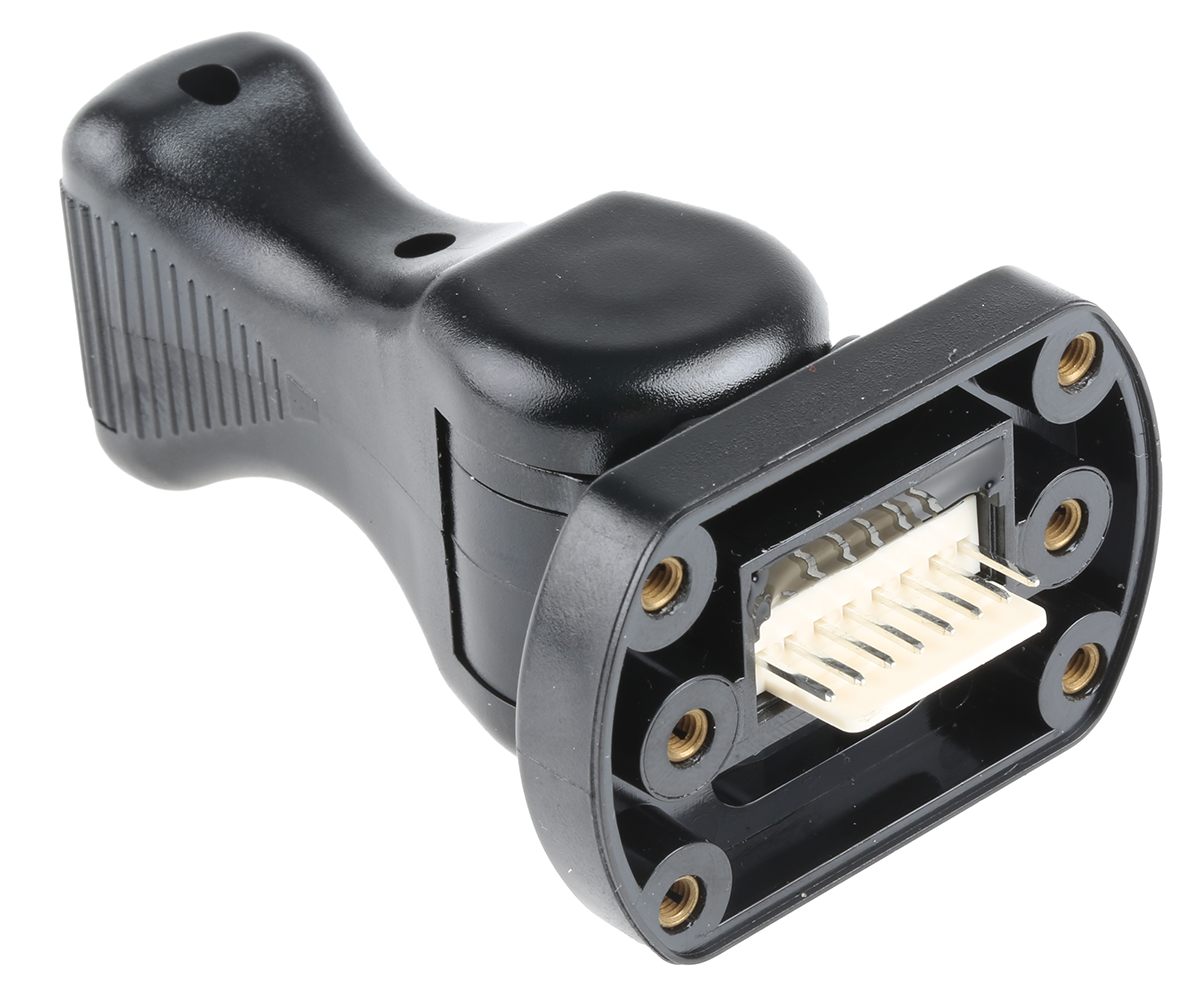

1-Axis Joystick Switch Lever, Hall Effect, IP67 5V
Manufacturer:
APEM
Manufacturer Part No:
BF240A01BK1200
Enrgtech Part No:
ET14033875
Warranty:
Manufacturer
£ 100.74
Checking for live stock
Number of Axes:
1
Switch Technology:
Hall Effect
IP Rating:
IP67
Handle Type:
Lever
Contact Voltage Rating:
5V
Contact Current Rating:
20 mA@ 5 V
Joystick Travel:
±25 °
Terminal Type:
Through Hole
Mechanical Life:
5000000Cycles
Depth Behind Panel:
7.5mm
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+70°C
