Potentiometer Joystick, Open Body
The 4000 series is a robust, industrial class potentiometer joystick. They have an all metal construction giving a long service life and a high level of performance. They have some advantages over contactless joysticks such as ease of interfacing, wider operating voltages, lower current drain and immunity to RFI.
Features & Benefits
Fully proportional joysticks
Robust mechanics with vinyl gaiter giving IP65 above panel protection
Inherently immune to RFI
High-quality potentiometers
Low current drain
Pre-wired with 200 mm long leads
Shaft throw: ±27.5° Product Application Information These joysticks are panel sealed to IP65 and thanks to their robust design they are ideally suited for heavy duty use within a wide range of temperatures and loads. Applications could include wheelchairs, factory automation and remote operated vehicles.
Robust mechanics with vinyl gaiter giving IP65 above panel protection
Inherently immune to RFI
High-quality potentiometers
Low current drain
Pre-wired with 200 mm long leads
Shaft throw: ±27.5° Product Application Information These joysticks are panel sealed to IP65 and thanks to their robust design they are ideally suited for heavy duty use within a wide range of temperatures and loads. Applications could include wheelchairs, factory automation and remote operated vehicles.

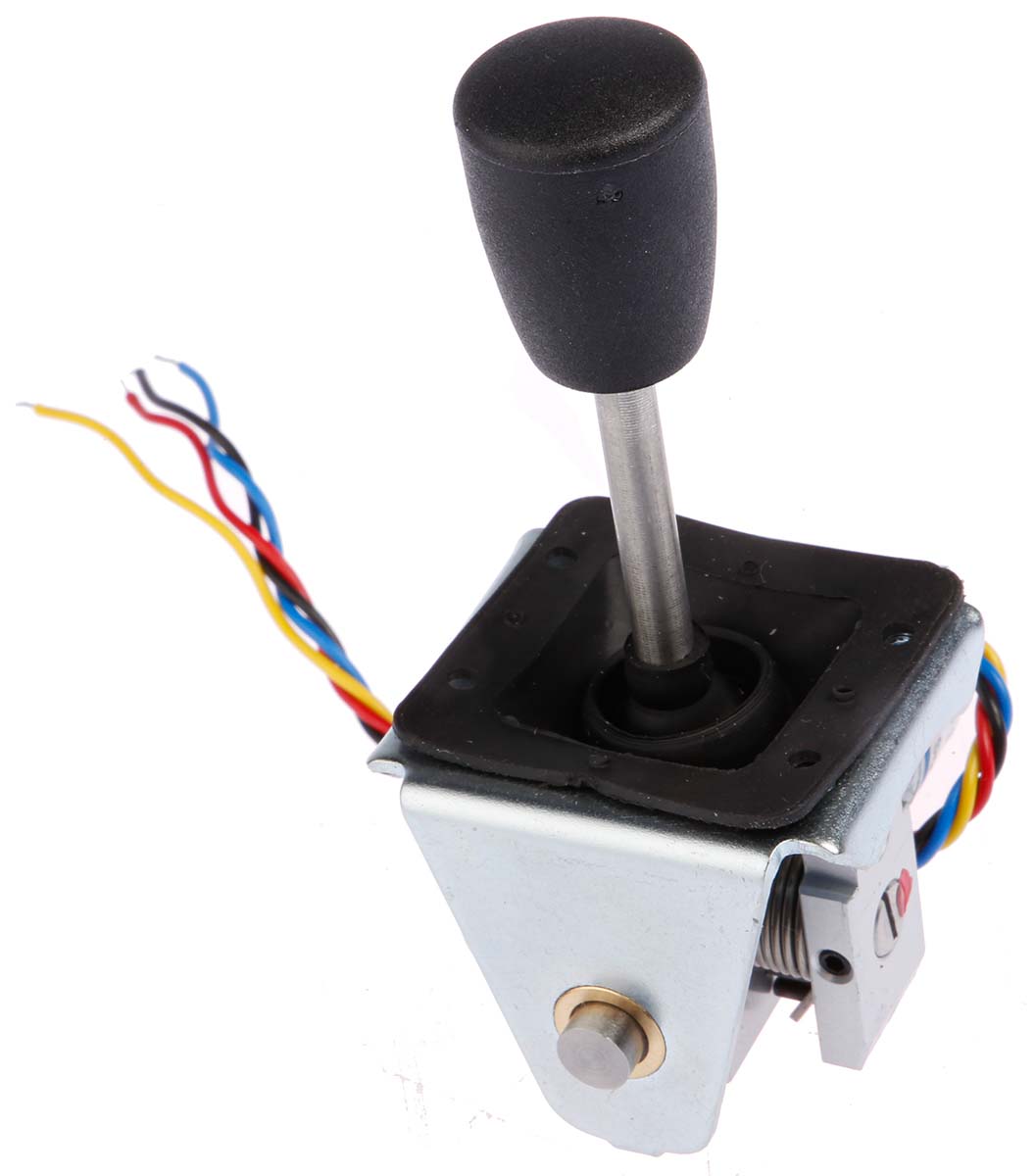

2-Axis Potentiometer Joystick Conical, Dual Axis Potentiometric, IP65
Manufacturer:
APEM
Manufacturer Part No:
400-123
Enrgtech Part No:
ET16784891
Warranty:
Manufacturer
£ 135.86
Checking for live stock
Number of Axes:
2
Switch Technology:
Dual Axis Potentiometric
IP Rating:
IP65
Handle Type:
Conical
Contact Material:
Brass
Joystick Travel:
±27.5 °
Terminal Type:
Flying Lead
Mechanical Life:
5000000Operations
Depth Behind Panel:
36.6mm
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+55°C
Operating Temperature Range:
-20 → +55°C
