The NZ Series is a family of ultra-compact switch joysticks, designed for the control of either machine functions or menu navigation. With above panel options that mimic the look of either a joystick or a toggle switch, the NZ series offers a panel sealed, two-axis control, in a compact below panel housing.
NZ series Compact switch joysticks
Compact Size
11.9mm Bush Mount
Alternate Handle Selection
Polyimide Flexi Tail Option
Silicone Rubber Sealing Boots
V5 switches up to 2A
11.9mm Bush Mount
Alternate Handle Selection
Polyimide Flexi Tail Option
Silicone Rubber Sealing Boots
V5 switches up to 2A

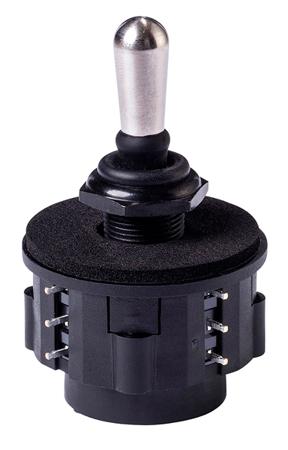

2-Axis Joystick Switch Lever, Dual Axis Potentiometric, 125V ac
Manufacturer:
APEM
Manufacturer Part No:
NZBA0135
Enrgtech Part No:
ET16836752
Warranty:
Manufacturer
£ 43.81
Checking for live stock
Series:
NZ
Number of Axes:
2
Switch Technology:
Dual Axis Potentiometric
Handle Type:
Lever
Contact Voltage Rating:
125V ac
Contact Current Rating:
2 A
Contact Material:
Silver Alloy
Joystick Travel:
15 °
Terminal Type:
Solder
Depth Behind Panel:
25.5mm
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+50°C
