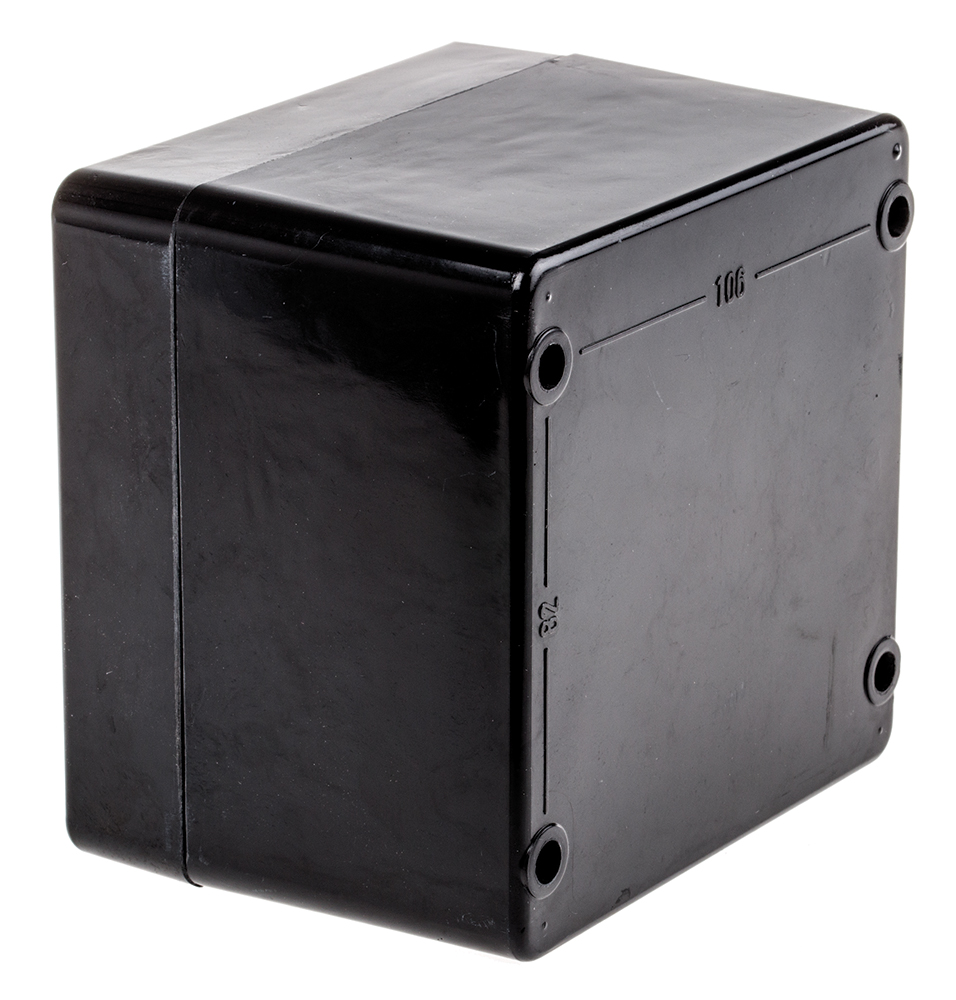

Bartec Junction Box The Bartec junction box is a terminal box manufactured with high impact resistance, glass-fibre reinforced polyester SMC, and DMC for extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. It has a voltage rating of 550V and a current rating of 21A. Features and Benefits Number of terminals are 9
Earth continuity plate
M20 conduit entries
Conductor size 0.5 to 4mm
Extended ambient temperature range
External earth connection
Length of 122mm, width of 120mm and height of 90mm Certifications ATEX certified
BASEEFA approved
IP66 rated
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
