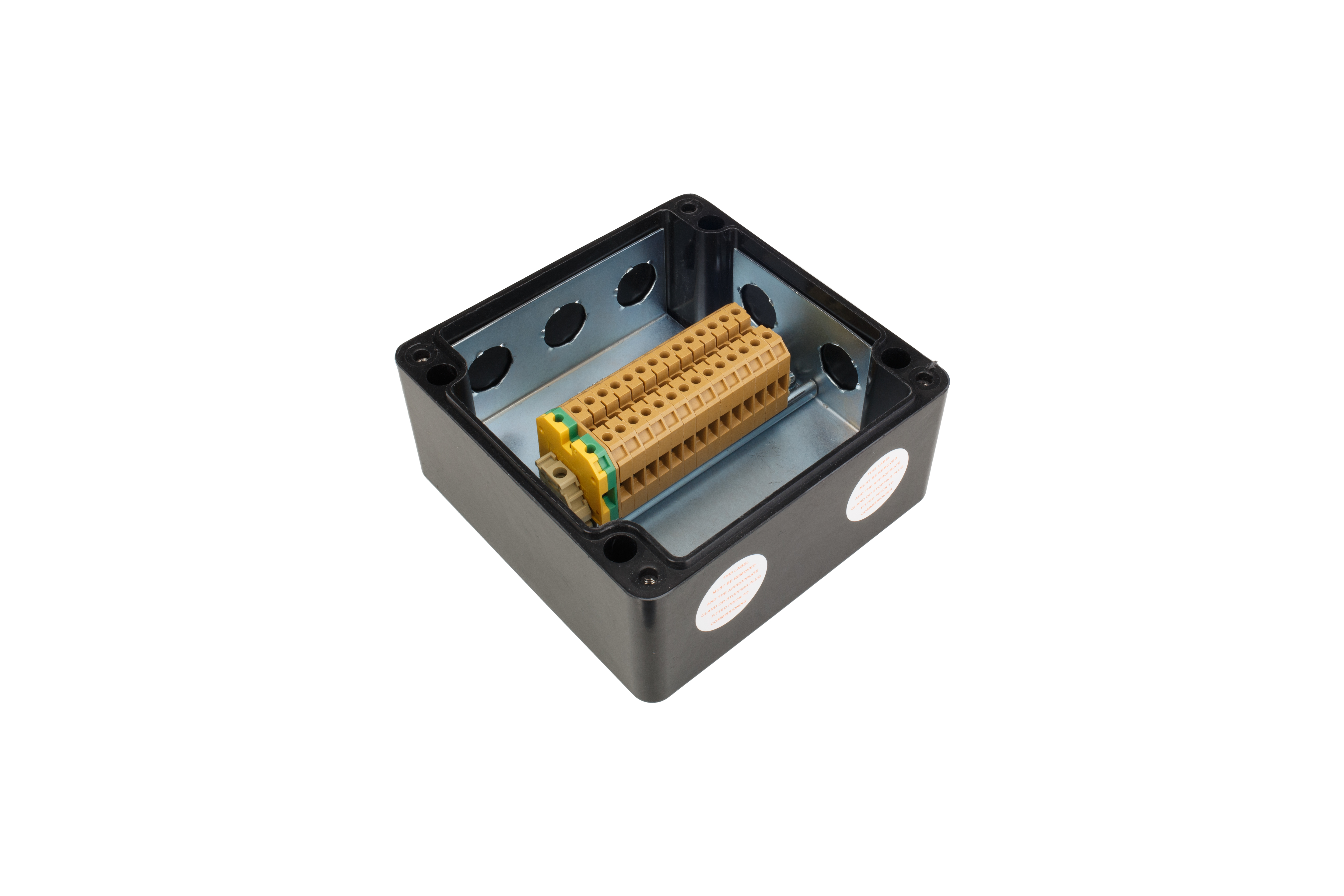

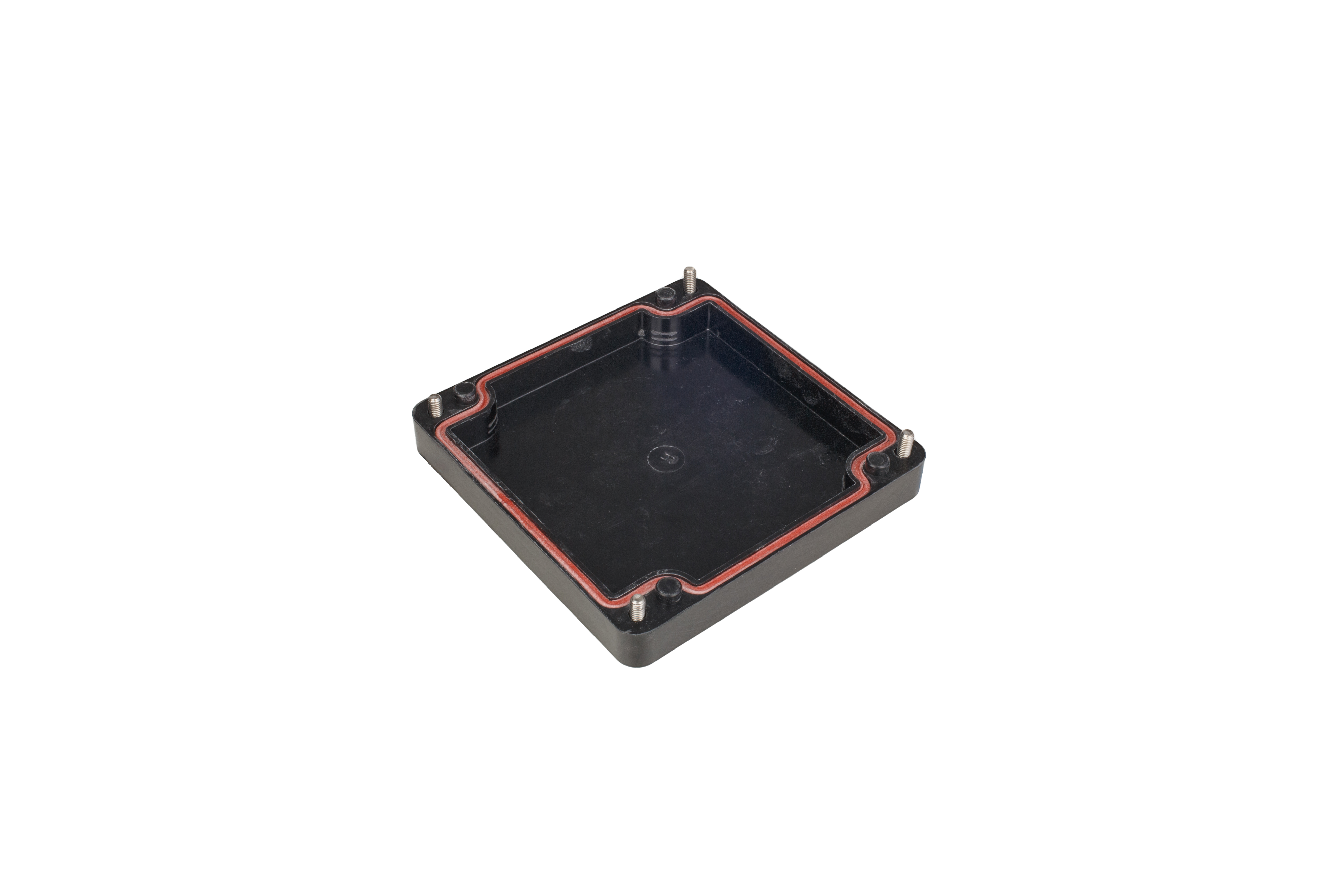

Bartec Junction Box
The Bartec junction box is a terminal box manufactured with high impact resistance, glass-fibre reinforced polyester SMC, and DMC for extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. It has a voltage rating of 550V and a current rating of 21A.
Features and Benefits
Number of terminals are 15
Earth continuity plate
M20 conduit entries
Conductor size 0.5 to 4mm
Extended ambient temperature range
External earth connection
Length of 160mm, width of 160mm and height of 90mm Certifications ANSI/ESD S20.20:2014
ATEX certified
BASEEFA approved
BS EN 61340-5-1:2007
IP66 rated
Earth continuity plate
M20 conduit entries
Conductor size 0.5 to 4mm
Extended ambient temperature range
External earth connection
Length of 160mm, width of 160mm and height of 90mm Certifications ANSI/ESD S20.20:2014
ATEX certified
BASEEFA approved
BS EN 61340-5-1:2007
IP66 rated
GB Series Junction Box, IP66, 15 Terminals, ATEX, 160 x 160 x 90mm
£ 153.03
Checking for live stock
Dimensions L x W x H:
160 x 160 x 90mm
Length:
160mm
Width:
160mm
Height:
90mm
IP Rating:
IP66
Number of Terminals:
15
Hazardous Area Certification:
ATEX
Current Rating:
21A
Series:
GB
