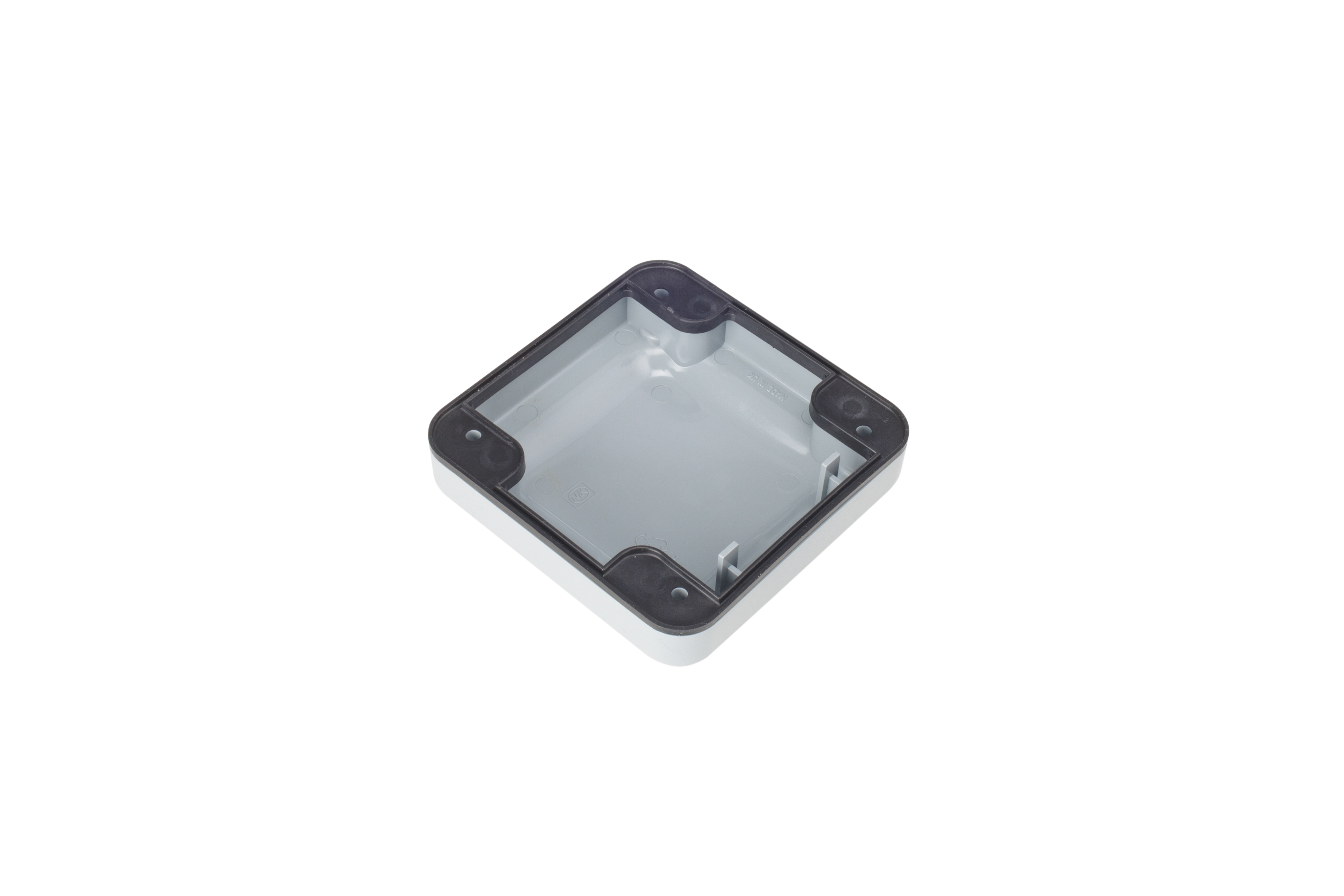

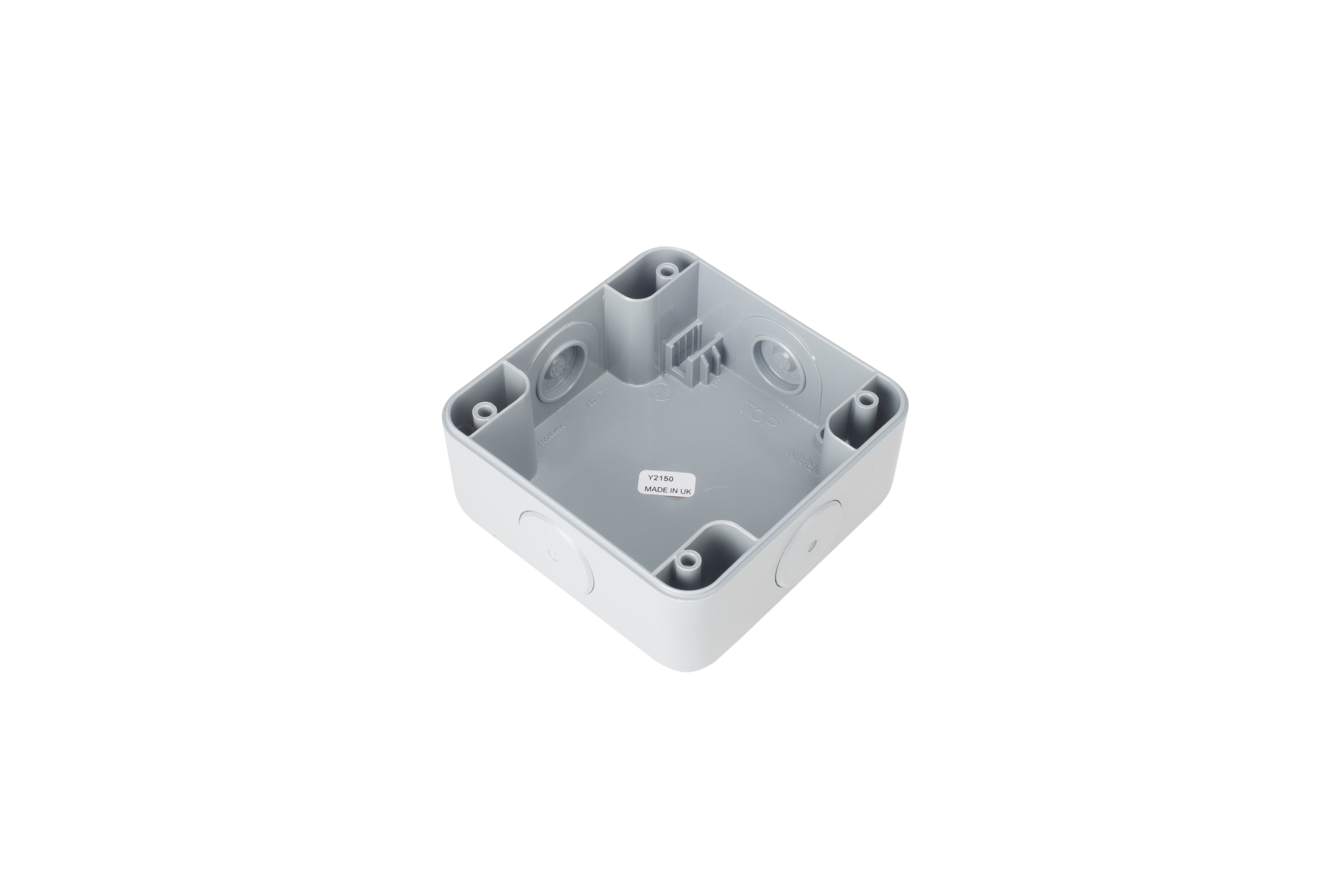

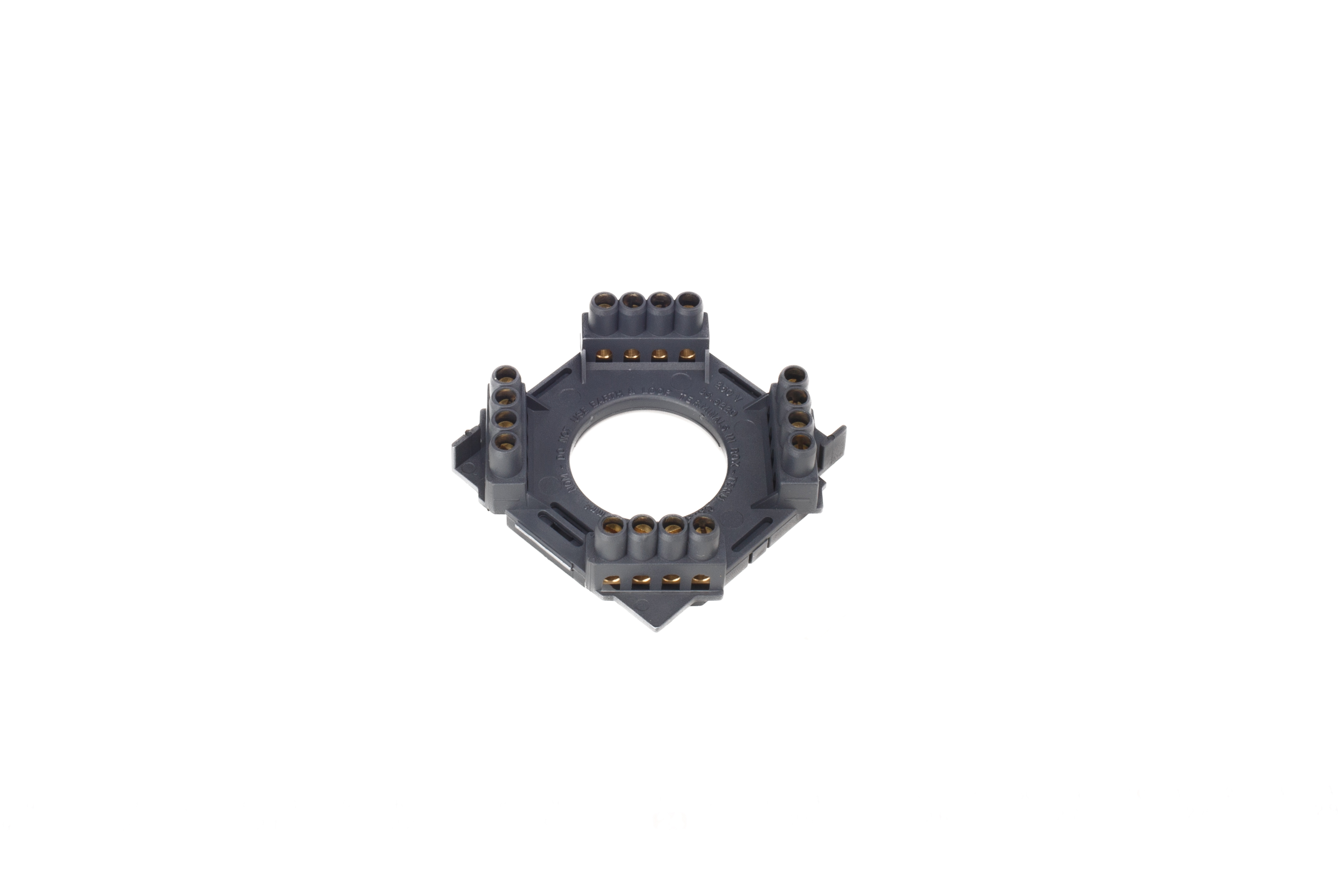

MK Electric Junction Boxes Introducing Masterseal Plus™ junction boxes from MK Electric. Designed as a solution to connect and protect cable wiring both indoor and outdoor. Inside is a 16 terminal connector block with 4-ways which accepts 2.5mm² cables and knockouts for cable entry on each side. Each junction box has an IP66 rating which offers protection from water, dirt and debris. Features and Benefits • 4 x 4-Way terminal
• Total ingress protection
• Operational in extreme conditions
• Operating temperature range -5°C to + 40°C
• Dimensions: L.95 mm x W.95 mm x H.65 mm
• Protection against cracks and fading
• Made from recyclable materials
• Available in grey and white (Square shape)
• IP66
• Wall mounted MK Electric Junction Box Options • White; RS stock no: 705-1718
• Grey; RS stock no: 705-1709 Typical Application

Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.
Typically junction boxes are used for:
• Connecting additional sockets to circuits
• Adding lighting points
• Extending circuits
• Electricity circuit repairs

Guarantee

Masterseal Plus™ is guaranteed for 20 years - 10 years for electronic products

Approvals & Certification

• BS EN 60669-1: 1999
• IP66 to BS EN 60529: 1992

FAQs
What’s included in the box?

Junction box, 16 terminal connector block and cover screws

Will using the knockouts affect the IP Rating?

No, the IP rating would not be affected
