Storm 720 TFX Series Sealed Keypads
These 720 TFX Series water resistant keypads from Storm Interface feature tactile keys with a responsive 'over centre' action.
Designed for use in harsh industrial enviroments
Above or below panel installation options
Maximum Switch Rating: 50 mA @ 24 V dc
Operational life of over 2 million cycles per key
Above panel water/ dust ingress IP65 protection rating
Above or below panel installation options
Maximum Switch Rating: 50 mA @ 24 V dc
Operational life of over 2 million cycles per key
Above panel water/ dust ingress IP65 protection rating

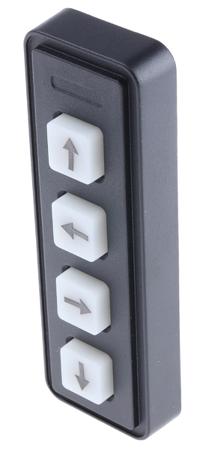

IP65 4 Key Polymer Keypad
Manufacturer:
Storm
Manufacturer Part No:
7203-04C0202
Enrgtech Part No:
ET13969077
Warranty:
Manufacturer
£ 20.94
Checking for live stock
Keypad Layout:
1 x 4
Number of Keys:
4
Keypad Output:
Matrix
IP Rating:
IP65
Case Material:
Polymer
Case Colour:
Black
Mechanical Life Per Key:
2000000
Actuator Colour:
White
Actuator Material:
Plastic
Depth Behind Panel:
12mm
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+60°C
