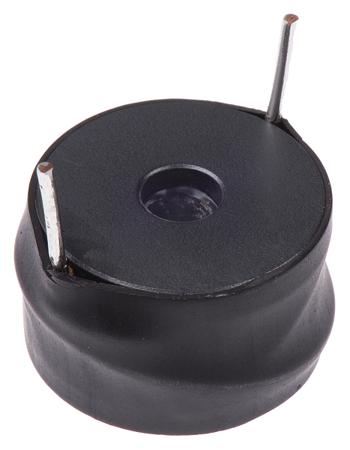

1447385c Murata 47 μH ±15% Bobbin Inductor, Max SRF:6.7MHz, Q:33, 8.5A Idc, 21mΩ Rdc, 1400

Murata 1400 Series High Current Radial Inductors Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%

For more information please check the datasheets.

Murata Power Solutions 1447385C Murata 47 μH ±15% Bobbin Inductor, Max SRF:6.7MHz, Q:33, 8.5A Idc, 21mΩ Rdc, 1400

Manufacturer:

Murata Power Solutions

Manufacturer Part No:

1447385C

Enrgtech Part No:

ET13953773

Warranty:

Manufacturer

Checking for live stock

Inductance:

47 μH

Maximum DC Current:

8.5A

Mounting Type:

Radial

Maximum DC Resistance:

21mΩ

Tolerance:

±15%

Diameter:

24.4mm

Length:

28.3mm

Depth:

25.9mm

Height:

15.5mm

Dimensions:

24.4 (Dia.) x 15.5mm

Maximum Self Resonant Frequency:

6.7MHz

Lead Pitch:

23.8mm

Datasheet-392785df(datasheets)
