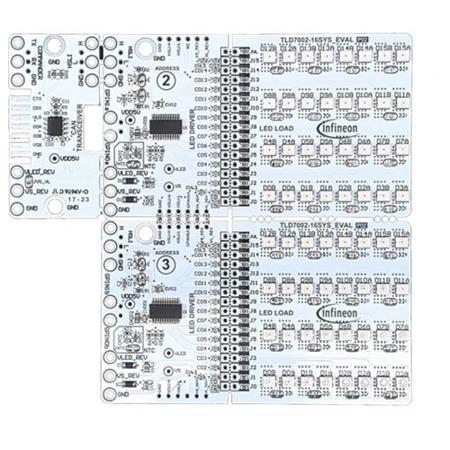

The Infineon Evaluation platform designed for the TLD7002 16ES LED driver, featuring a modular PCB with three snappable sections. It includes one CAN transceiver section, two LED driver sections, and two LED load sections, allowing users to customize configurations to simulate various system implementations. Each of the two TLD7002 16ES devices on the board is equipped with pre programmed one time programmable memory, assigned addresses 2 and 3, facilitating streamlined testing and development of LED driver applications. 64 RED LEDs
Snappable CAN transceiver and load boards
CAN transceiver enables usage of any microcontroller
