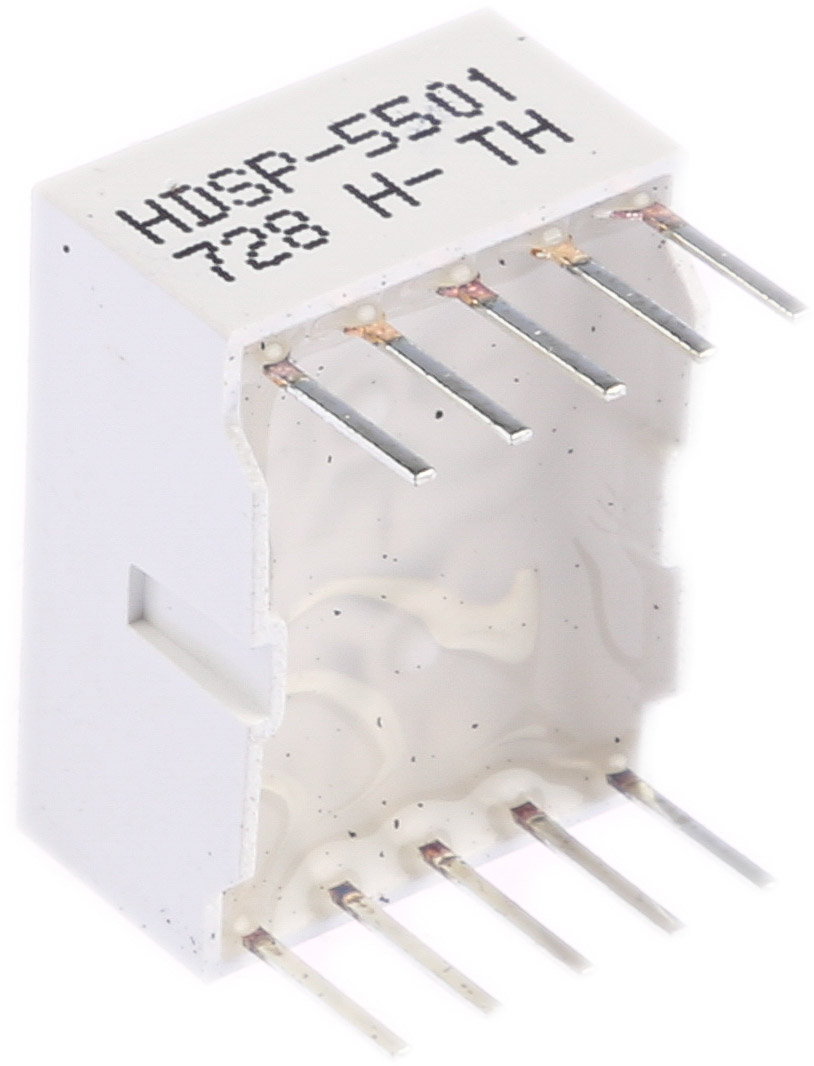

HDSP-5501 7-Segment LED Display, CA Red 3.7 mcd RH DP 14.2mm

Display Type:

7-Segment

Number of Characters:

1

LED Colours:

Red

Number of Segments:

7

Dominant Wavelength:

626 nm

Character Width:

7.8mm

Character Height:

14.2mm

Common Connection:

Anode

Mounting Type:

Through Hole

External Dimensions:

17 x 12.6 x 8mm

External Height:

17mm

External Width:

12.6mm

External Depth:

8mm

Luminous Intensity:

3.7 mcd

Colour of Face:

Grey

Forward Voltage:

2.1 V

Maximum Operating Temperature:

+100°C

Operating Temperature Range:

-40 → +100°C

Decimal Orientation:

Right Side

Forward Current:

90mA

Minimum Operating Temperature:

-40°C
