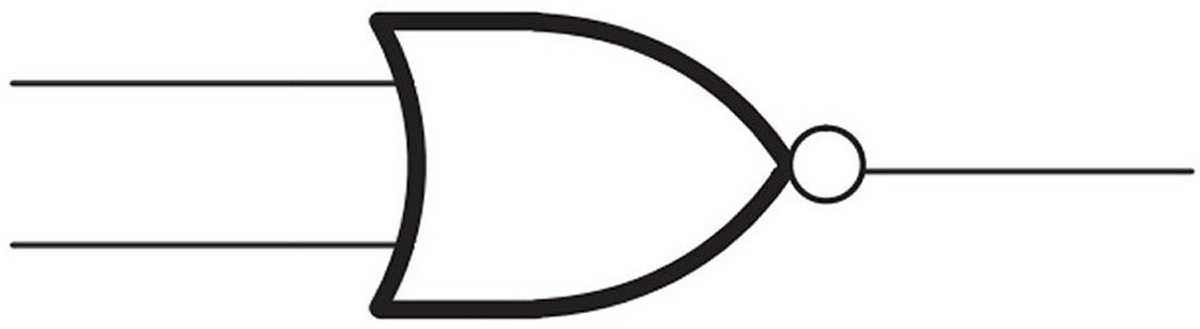

mc14001ubdr2g onsemi MC14001UBDR2G, Quad 2-Input NOR Logic Gate, 14-Pin SOIC
mc14001ubdr2g onsemi MC14001UBDR2G, Quad 2-Input NOR Logic Gate, 14-Pin SOIC
mc14001ubdr2g onsemi MC14001UBDR2G, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

onsemi MC14001UBDR2G, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

onsemi MC14001UBDR2G, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

Manufacturer:
onsemi
Manufacturer Part No:
MC14001UBDR2G
Enrgtech Part No:
ET100424984
Warranty:
Manufacturer
Pre-order

Estimated Delivery Time: 7-13 weeks

Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Width:
4mm
Height:
1.5mm
Length:
8.75mm
Pin Count:
14
Dimensions:
8.75 x 4 x 1.5mm
Input Type:
CMOS
Output Type:
Open Drain
Package Type:
SOIC
Mounting Type:
Surface Mount
Logic Function:
NOR
Reference Voltage:
2
Number of Elements:
4
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Minimum Operating Temperature:
-55 °C
Maximum Low Level Output Current:
8.8mA
Maximum Operating Supply Voltage:
18 V
Minimum Operating Supply Voltage:
-0.5 V dc
Propagation Delay Test Condition:
50pF
Maximum High Level Output Current:
-3.5mA
Maximum Propagation Delay Time @ Maximum CL:
180 ns @ 50 pF
