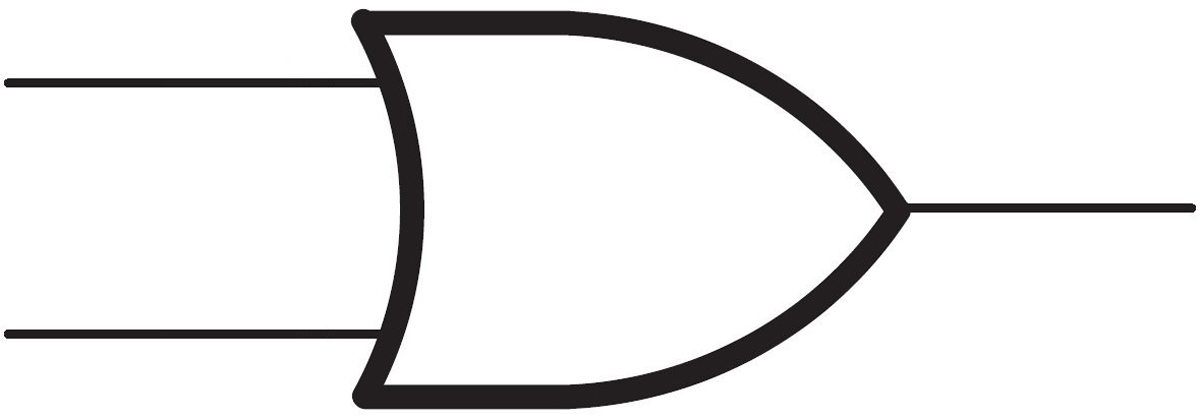

74LVC2G32DP,125, Dual 2-Input OR Logic Gate, 8-Pin TSSOP

Logic Function:

OR

Mounting Type:

Surface Mount

Number of Elements:

2

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

TSSOP

Pin Count:

8

Logic Family:

LVC

Input Type:

TTL

Maximum Operating Supply Voltage:

5.5 V

Maximum High Level Output Current:

-32mA

Maximum Propagation Delay Time @ Maximum CL:

6 ns @ 50 pF

Minimum Operating Supply Voltage:

1.65 V

Maximum Low Level Output Current:

32mA

Height:

0.95mm

Dimensions:

3.1 x 3.1 x 0.95mm

Output Type:

Single Ended

Length:

3.1mm

Maximum Operating Temperature:

+125 °C

Propagation Delay Test Condition:

50pF

Minimum Operating Temperature:

-40 °C

Width:

3.1mm
