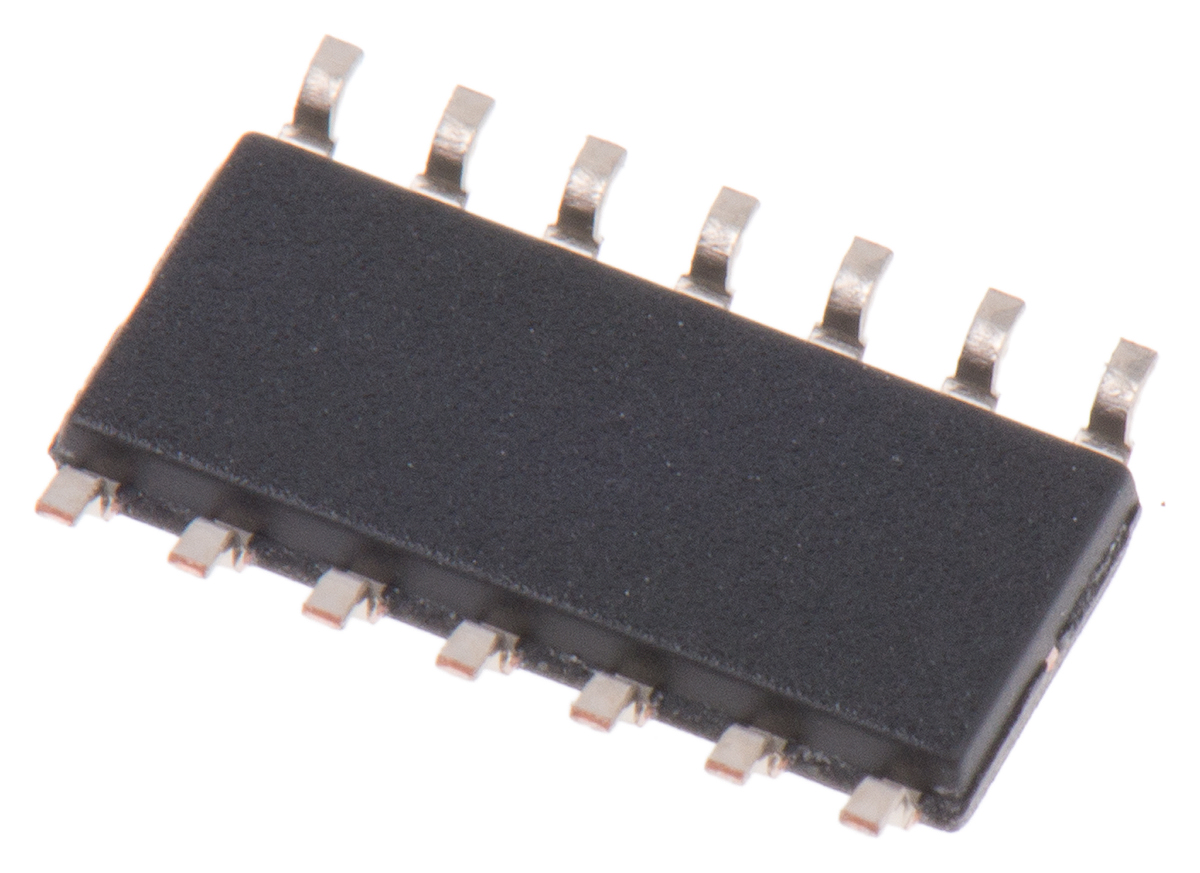

74HCT00D,652, Quad 2-Input NAND Logic Gate, 14-Pin SOIC

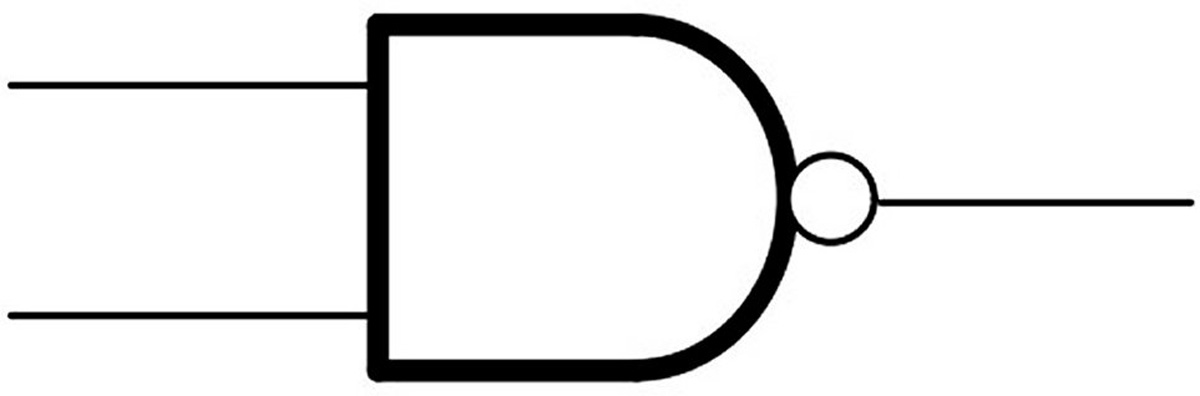

Logic Function:

NAND

Mounting Type:

Surface Mount

Number of Elements:

4

Number of Inputs per Gate:

2

Schmitt Trigger Input:

No

Package Type:

SOIC

Pin Count:

14

Logic Family:

HCT

Maximum Operating Supply Voltage:

5.5 V

Maximum High Level Output Current:

-4mA

Minimum Operating Supply Voltage:

4.5 V

Maximum Low Level Output Current:

4mA

Minimum Operating Temperature:

-40 °C

Width:

4mm

Length:

8.75mm

Maximum Operating Temperature:

+125 °C

Propagation Delay Test Condition:

50pF

Dimensions:

8.75 x 4 x 1.45mm

Height:

1.45mm
