Fully Encapsulated
Contact Form A - Normally open
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)

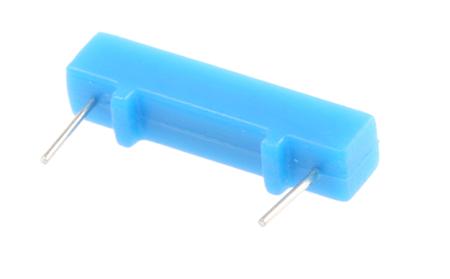

Rectangular Reed Switch, NO, 24V, 100mA
Manufacturer:
Assemtech
Manufacturer Part No:
S1325
Enrgtech Part No:
ET16818629
Warranty:
Manufacturer
£ 1.89
Checking for live stock
Switch Shape:
Rectangular
Normal State Configuration:
NO
Terminal Type:
PCB Pin
Maximum Current:
100mA
Maximum AC Voltage:
24V
Contact Resistance:
200mΩ
Total Length:
14.8mm
Length:
14.8mm
Dimensions:
14.8 x 3.2 x 3.2mm
Maximum Operating Temperature:
+70°C
Depth:
3.2mm
Minimum Operating Temperature:
-25°C
