VABM Series Manifold Rails
The VABM manifold rails are for pneumatic linking of VUVG valves.
Features and Benefits
• Assembly in any position
• Corrosion resistance class 2 (moderate corrosion stress)
• Through-hole mounting
• RoHS compliant
• Wrought aluminium alloy manifold strip
• Semi in-line and sub-base valve options available
• Corrosion resistance class 2 (moderate corrosion stress)
• Through-hole mounting
• RoHS compliant
• Wrought aluminium alloy manifold strip
• Semi in-line and sub-base valve options available

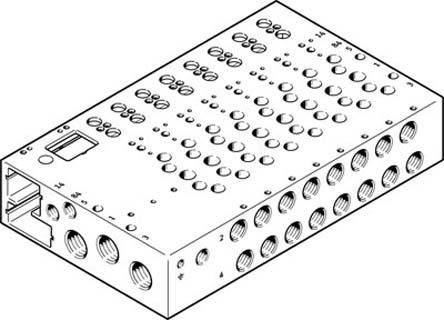

VABM series 6 station G 1/4 Manifold Base for use with VUVG-B Series Sub-Base Valves, 573502
Manufacturer:
Festo
Manufacturer Part No:
VABM-L1-14W-G14-6-GR
Enrgtech Part No:
ET16929719
Warranty:
Manufacturer
£ 151.89
Checking for live stock
Number of Stations:
6
Connection Port Thread:
G 1/4
Manufacturer Series:
VABM
Type:
Manifold Base
Body Material:
Aluminium Alloy
Thread Size:
1/4in
Thread Standard:
G
Model Number:
573502
Electrical Connection Type:
Screw
Mounting Type:
Base
For Use With:
VUVG-B Series Sub-Base Valves
