Wurth Elektronik Copper Tapes The Wurth Elektronik copper tape is coated with a very high shielding effect. This tape is 0.07mm thick, 50mm wide and 33m long. This product can also be used in conjunction with the conductive Ni/Cu woven glass fibre sleeve.
EMI/RFI shielding tape:
When using this tape, galvanic compatibility should be taken into account. Features and Benefits Breaking load is 37N/cm
Operating temperature ranges between -25°C and 85°C
Highly conductive adhesive with metal powder
Self-adhesive
Electrically conductive Applications Military
Aerospace
Aviation
Nuclear control
Submarine
Transportation (automotive control, train control, ship control, etc.)
Transportation signal
Disaster prevention
Medical
Public information network

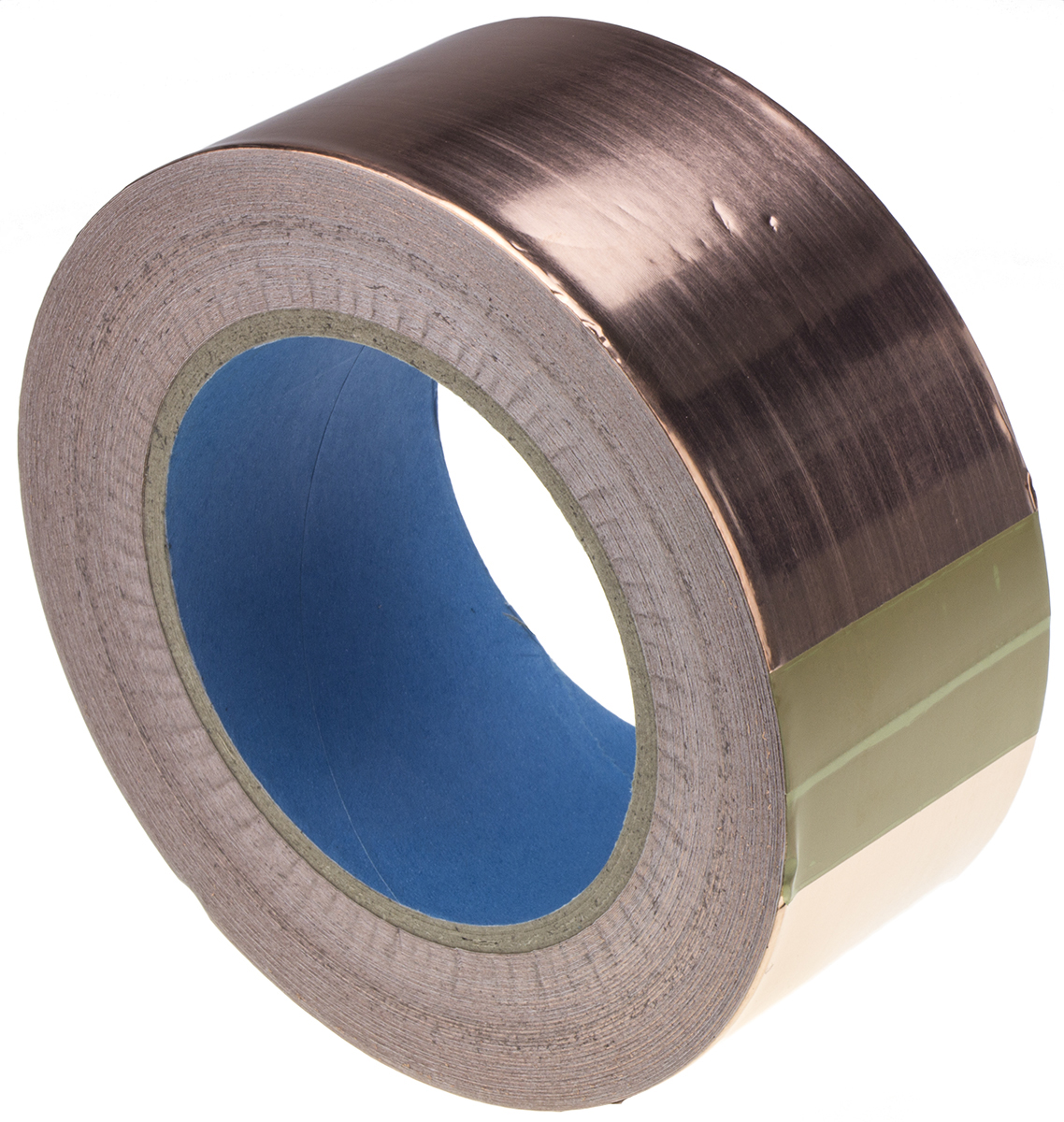

Wurth Elektronik A Conductive Metallic Tape, 50mm x 33m

Manufacturer:
Manufacturer Part No:
3003350
Enrgtech Part No:
ET26328507
Warranty:
Manufacturer
Checking for live stock
Total Thickness:
0.07mm
Tape Type:
Copper Tape
Foil Thickness:
0.035mm
Width:
50mm
Length:
33m
Conductivity:
Conductive
Adhesion Strength:
5 N/cm
Adhesive Material:
Acrylate
Material Plating:
None
Tensile Strength:
40N/cm
Maximum Temperature Resistance:
+155°C
Minimum Temperature Resistance:
-25°C
Model Number:
3003350A
pdf icon
Datasheet-956e3f60(datasheets)
