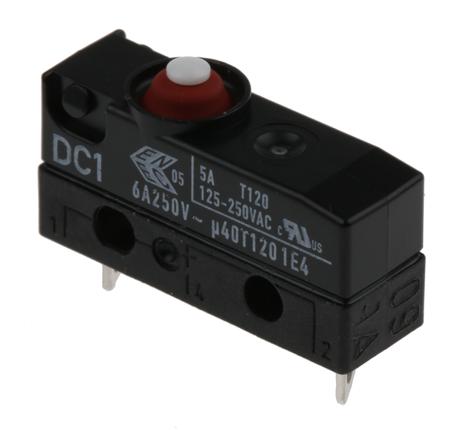

ZF Miniature Microswitch
The ZF DC series miniature Microswitch has a spherical head button actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPST-NC contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 1.96N
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified

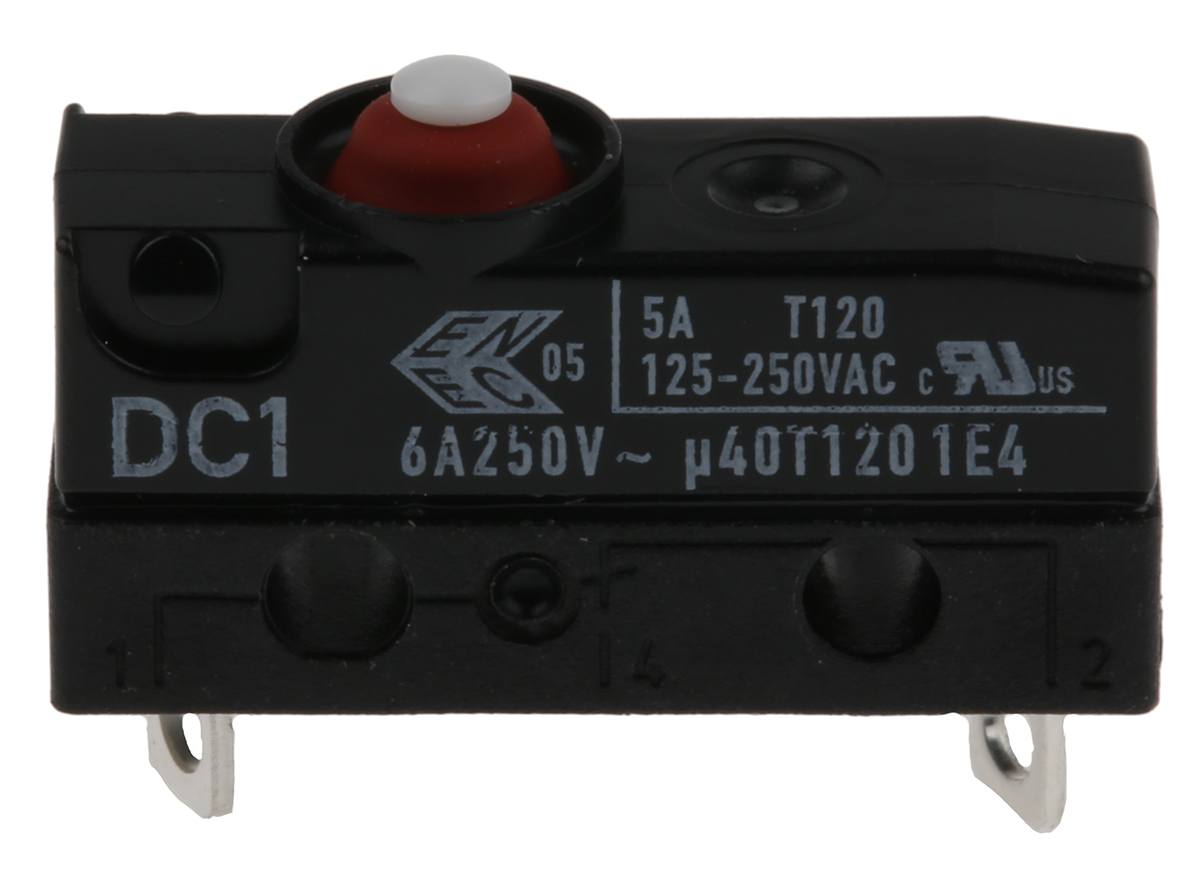

Button Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPST, IP6K7
£ 4.01
Checking for live stock
Actuator Type:
Button
Terminal Type:
Solder
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPST
IP Rating:
IP6K7
Operating Force:
1.96 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +120°C
