ZF Miniature Microswitch The ZF DC series miniature Microswitch has a spherical head button actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy. Features and Benefits Operating force is 1.96NOperating temperature ranges between -40°C and 105°CHousing material is PET/PBTMechanical life is more than 1x106 operations Certifications IP67 ratedENEC certifiedUL approvedKEMA certified

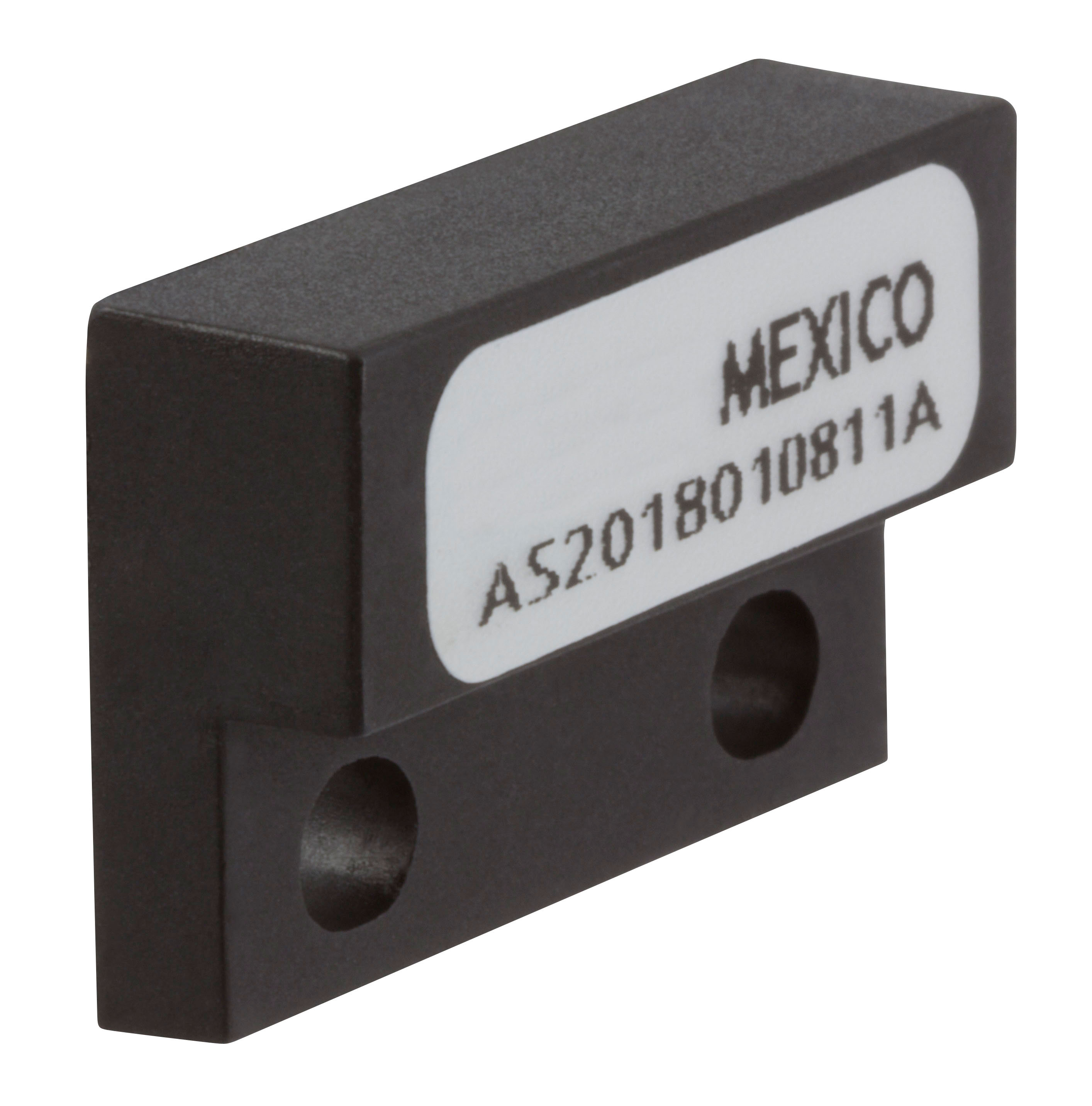

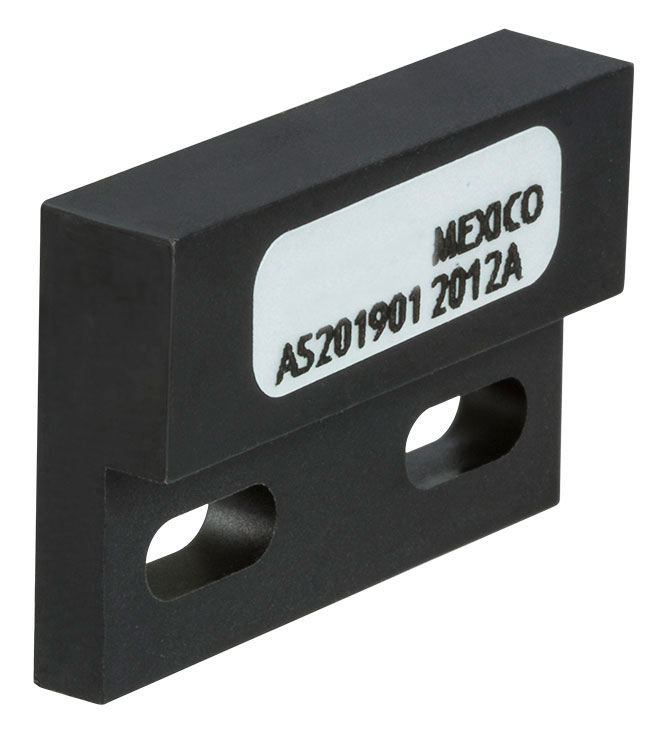

MP2019 Series Magnetic Reed Sensors The MP2018 series of sensors are reed based magnetic position sensors in a plastic flange mount package. These switches can be approached by a magnet from any angle and with either pole. SPST-NO Form A10 W max. power ratingContacts hermetically sealed for long lifeZero power consumptionResistant to moisture and dirtOperating temperature -40 → +105 °CMagnetic actuator is available (stock no 765-9343)

DB Series Microswitches DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures. Rated for currents up to 10 amp at 250VACRange of auxiliary actuators availableMechanical life: up to 15 x 106 operationsWide variety of terminal types availableV4 case size

E Series E series general purpose microswitches offer a long life coil spring mechanism designed to work at high temperatures. The E series is available in a wide choice of actuators, terminal types and current ratings to suit various applications. Choice of actuator stylesLong-life coil spring mechanismQuick Connect terminals 0.250"

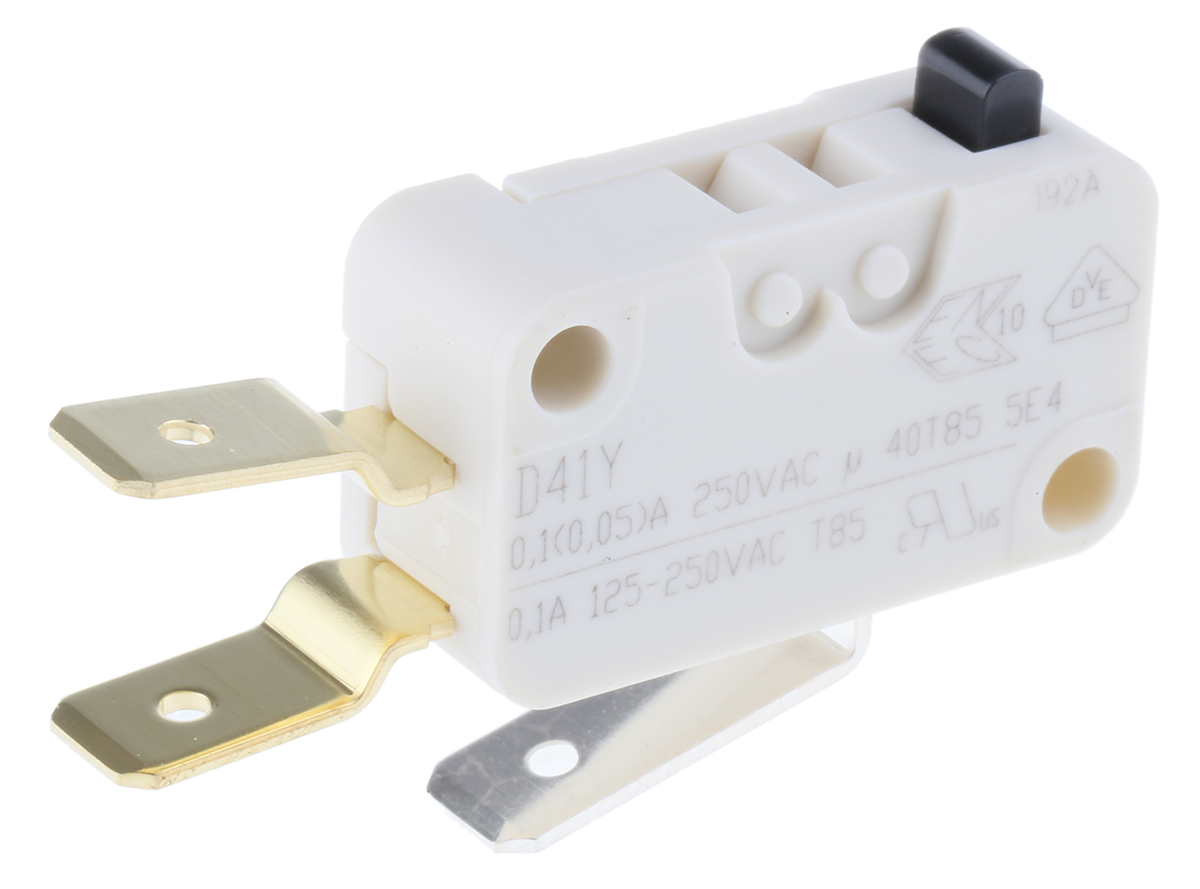

Standard V4 Microswitches (DB3 100mA) DB3 rated at 100mA 250Vac; ENEC, EN61058Maximum operating temperatures 120°C UL 94V-0Housing material PET/PBT (UL 94V-0)Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85Silver-nickel contactsSPDT contact configurationFor sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506Height 11.65mm, Width 20mm, Depth 6.5mm

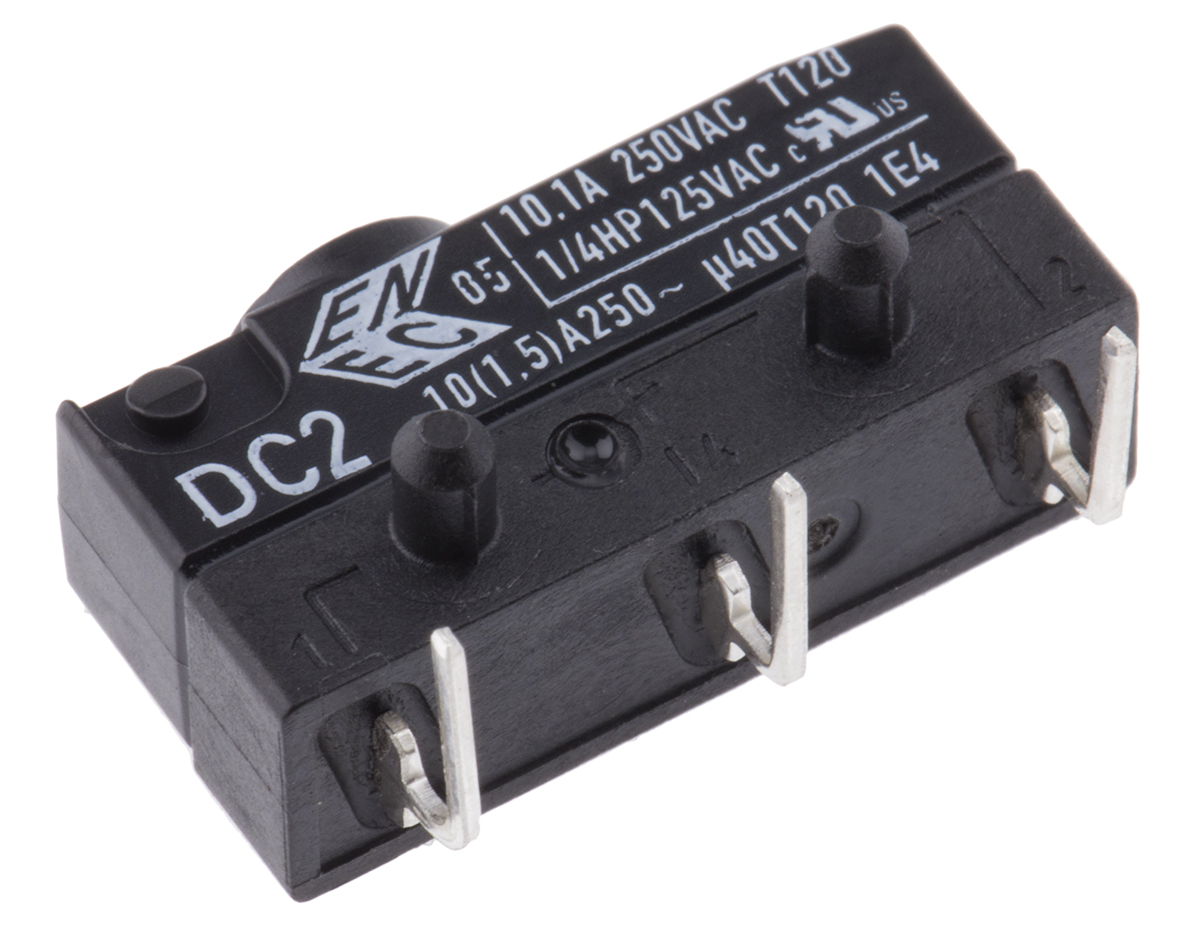

ZF Subminiature Microswitch The ZF DC series subminiature Microswitch has a spherical-head button actuator and a contact rating of 10A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy. Features and Benefits Operating force is 3.33NOperating temperature ranges between -40°C and 105°CHousing material is PET/PBTWired leads type terminationMechanical life is more than 1x106 operations Certifications IP67 ratedENEC certifiedUL approvedKEMA certified

ZF Subminiature Microswitch The ZF DC series subminiature Microswitch has a lever actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy. Features and Benefits Operating force is 0.69NOperating temperature ranges between -40°C and 105°CHousing material is PET/PBTLeads 0.75mm² type terminationMechanical life is more than 1x106 operations Certifications IP67 ratedENEC certifiedUL approvedKEMA certified

DB Series Microswitches DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures. Rated for currents up to 10 amp at 250VACRange of auxiliary actuators availableMechanical life: up to 15 x 106 operationsWide variety of terminal types availableV4 case size

ZF Microswitch The ZF GP series Microswitch has a short roller actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy. Features and Benefits Operating forces is 1.56NUltra small movement differentialFitted with large brass screw terminalsMechanical life is up to 1 million cyclesOperating temperature ranges between -20°C and 85°CCase and cover material is phenolic Certifications UL 1054

DB Series Microswitches DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures. Rated for currents up to 10 amp at 250VACRange of auxiliary actuators availableMechanical life: up to 15 x 106 operationsWide variety of terminal types availableV4 case size

Standard V4 Microswitches (DB3 100mA) DB3 rated at 100mA 250Vac; ENEC, EN61058Maximum operating temperatures 120°C UL 94V-0Housing material PET/PBT (UL 94V-0)Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85Silver-nickel contactsSPDT contact configurationFor sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506Height 11.65mm, Width 20mm, Depth 6.5mm

KF Series Waterproof Pushbutton Switches These sealed waterproof pushbutton switches are available with a choice of pole, throw and switch options, making them suitable for a large range of applications- from vehicles and outdoor machinery to medical devices. Certified to IP65 requirements for water and dust resistance. Features and Benefits:• Available in single- or double-pole• Lighted and non-lighted versions• Maintained-action and momentary options• Snap-in mounting• Mechanical life: 100,000 cycles The KF Series includes: • Stock number 706-4058 is a black pushbutton switch (On-Off)• Stock number 706-4060 is a green illuminated pushbutton switch (Maintained)• Stock number 706-4064 is a black pushbutton switch ((On)-Off)• Stock number 706-4067 is a red illuminated pushbutton switch (Maintained)• Stock number 706-4070 is a red illuminated pushbutton switch (Maintained)• Stock number 706-4073 is a black pushbutton switch (Maintained)• Stock number 706-4076 is a green illuminated pushbutton switch (Maintained)
