Miniature PCB Microswitch
Available with a choice of actuators
Switch body moulded from UL94V-0 material
SPDT silver-plated wiping contacts
Operating temperature range: -25 to +85°C
Switch body moulded from UL94V-0 material
SPDT silver-plated wiping contacts
Operating temperature range: -25 to +85°C

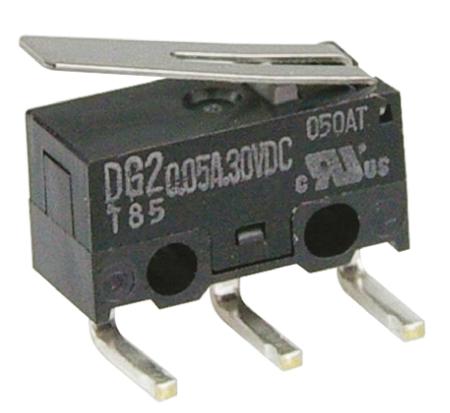

Hinge Lever Micro Switch, Right Angle PCB Terminal, 50 mA @ 30 V dc, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DG23-B2LA
Enrgtech Part No:
ET13795298
Warranty:
Manufacturer
£ 0.43
Checking for live stock
Actuator Type:
Hinge Lever
Terminal Type:
Right Angle PCB
Contact Current Rating:
50 mA @ 30 V dc
Contact Configuration:
SPDT
Operating Force:
0.44 N
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+85°C
Contact Material:
Gold Plated
Mechanical Life:
1000000Operations
Operating Temperature Range:
-25 → +85°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=46909&DisplayLogo=False
