IP67 V4 Microswitches (DC3 100mA)
Sealed switch with IP67 protection
Contact rating 100mA

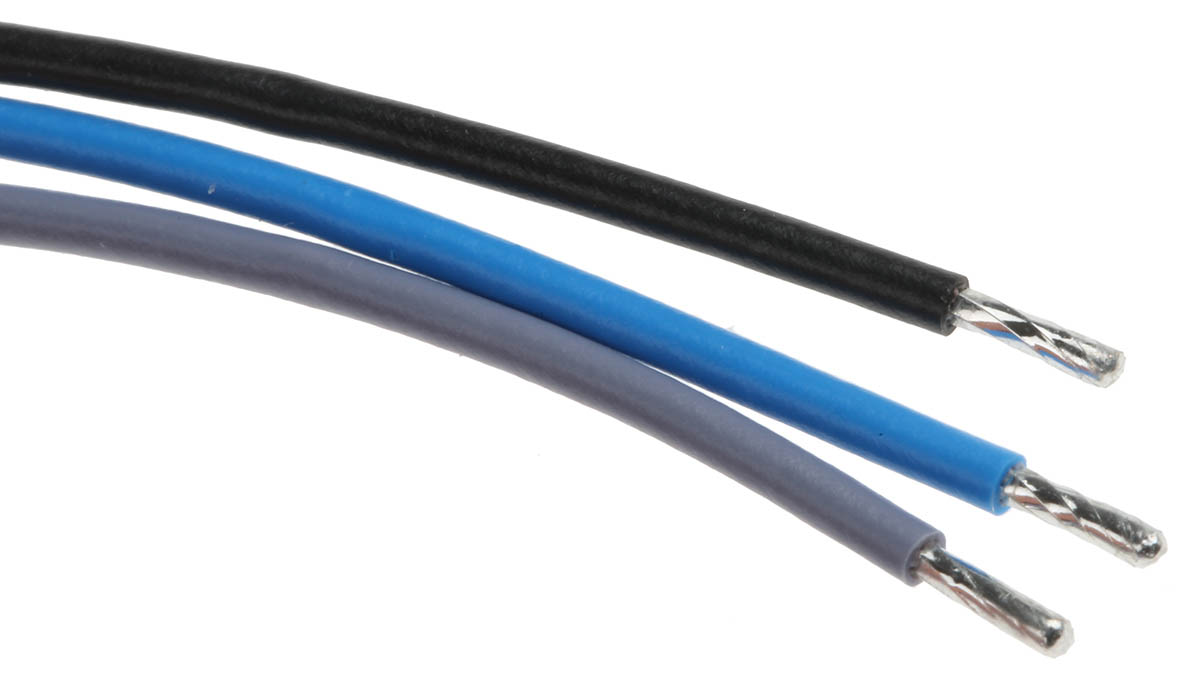

Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL
Contact rating 100mA
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL

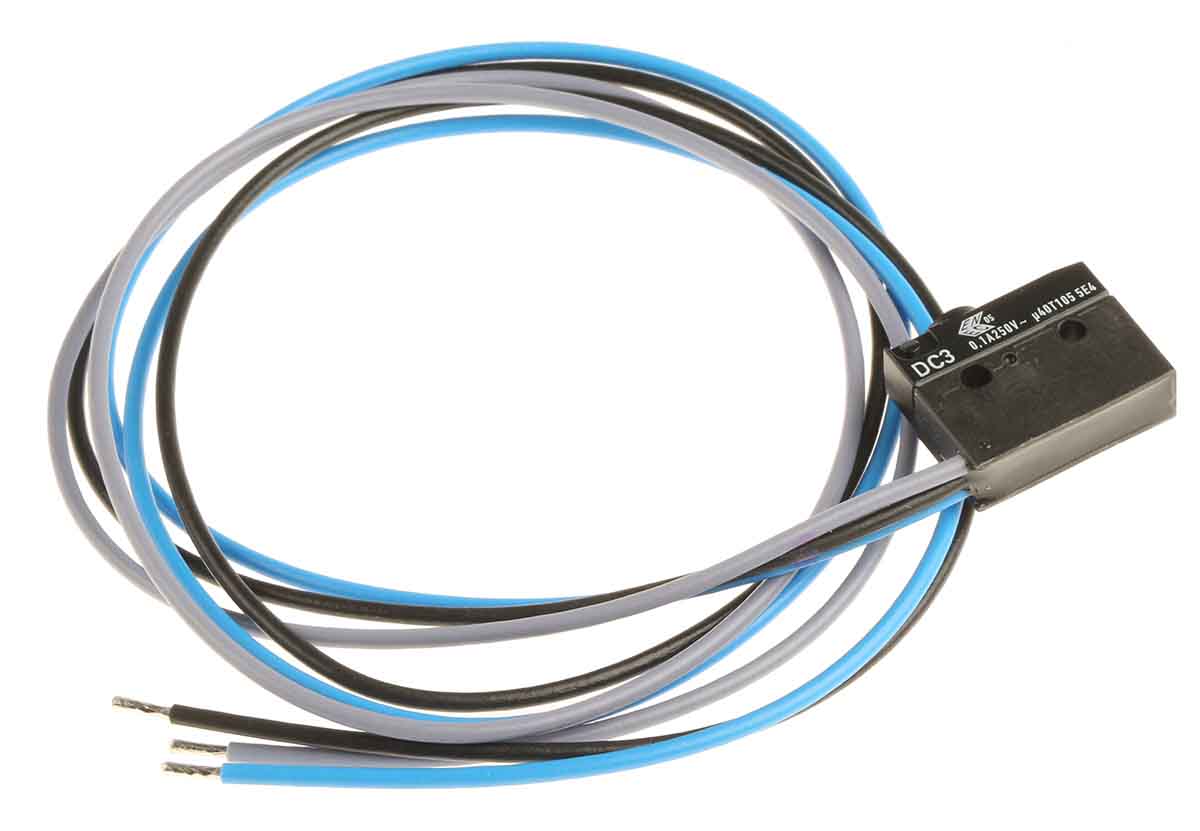

Button Micro Switch, Wire Lead Terminal, 100 mA @ 30 V dc, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC3C-C3AA
Enrgtech Part No:
ET13817489
Warranty:
Manufacturer
£ 7.44
Checking for live stock
Actuator Type:
Button
Terminal Type:
Wire Lead
Contact Current Rating:
100 mA @ 30 V dc
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
1.96 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+105°C
Contact Material:
Gold
Mechanical Life:
1000000Operations
Voltage Rating:
250V ac
Operating Temperature Range:
-40 → +105°C
