Marquardt Miniature Snap Action Switches - 1005 Series
Marquardt 1005 Series miniature snap action single pole switches. The 1005 Series snap action switches are designed to DIN41635A with a contact resistance of 100MΩ. The Marquardt 1005 Series is available with various actuators and terminations.
Contact distance
741-0978
which has a contact distance greater than 3mm)
Bounce time UL 94 V-2 flammability
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
Switch type:
Switch SPDT
Connection:
Spade cable shoes 6.3
´
0.8 mm,
189157: although 4.8
´
0.5 mm
Switch material:
Silver
Mechanical life:
30
´
10
6
functions at max.
contact load
Temp. range:
-55°C* to +85°C
Dimensions:
See drawings

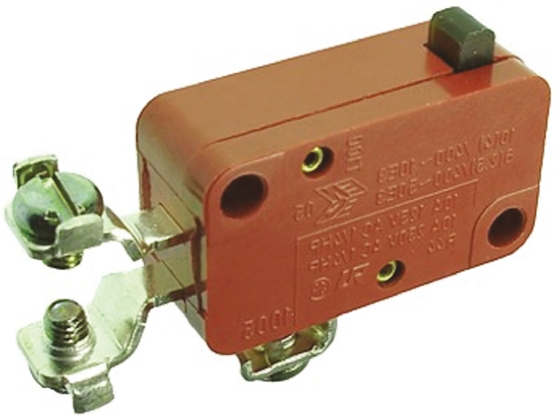

1005.0101, SPDT Plunger Microswitch, 10 A @ 250 V ac
Manufacturer:
MarquardtManufacturer Part No:
1005.0101
Enrgtech Part No:
ET13856397
Warranty:
Manufacturer
£ 5.22
Checking for live stock
Operating Force:
1.5 → 2.5 N
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +100°C
Contact Current Rating:
10 A @ 250 V ac
Contact Configuration:
SP-CO
Case Material:
Thermosetting Plastic
Actuator Type:
Plunger
Mechanical Life:
10000000Cycles
Contact Material:
Silver
Maximum Operating Temperature:
+100°C
Terminal Type:
Screw
Switch Housing:
V0 Housing
