ZF Microswitch
The ZF GP series Microswitch has a roller plunger actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating forces is 3.42N
Screw terminal type termination
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054
Screw terminal type termination
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054

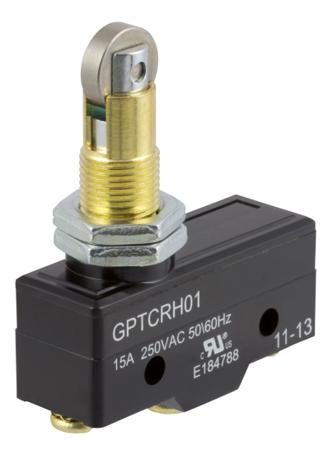

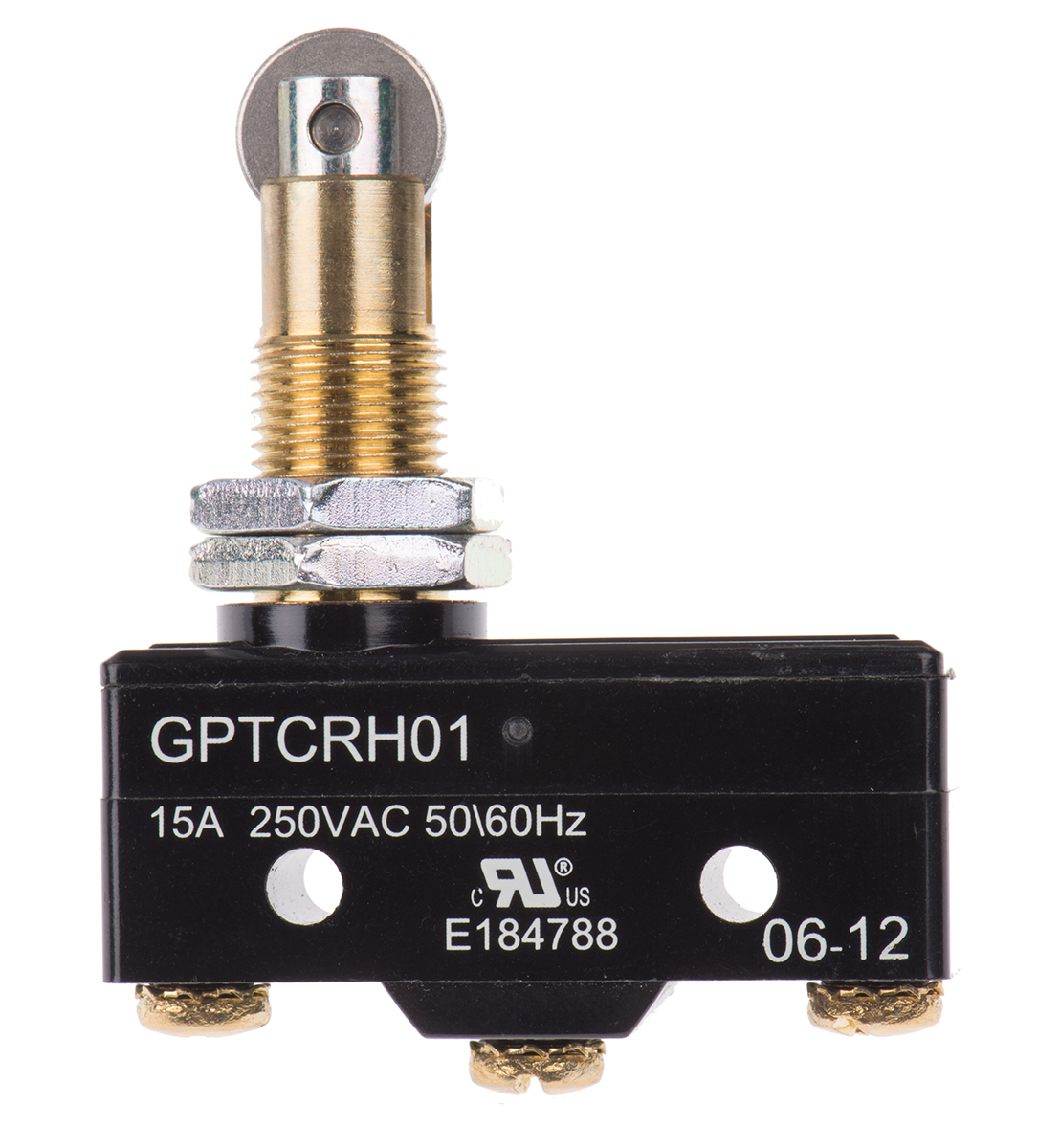

Roller Plunger Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
GPTCRH01
Enrgtech Part No:
ET13879745
Warranty:
Manufacturer
£ 18.15
Checking for live stock
Actuator Type:
Roller Plunger
Terminal Type:
Screw
Contact Current Rating:
15 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
3.42 N
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Release Force:
1.11N
Operating Temperature Range:
-20 → +85°C
