IP67 V4 Microswitches (DC2 10A)
IP67 V4 Microswitches (DC2 10A)
Sealed actuator to IP67
Contact rating 10A
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm)
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
SPDT contact configuration
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm
Dimensions: H11.65 x W20 x D6.5mm Approvals
ENEC, UL
Sealed actuator to IP67
Contact rating 10A
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm)
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
SPDT contact configuration
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm
Dimensions: H11.65 x W20 x D6.5mm Approvals
ENEC, UL

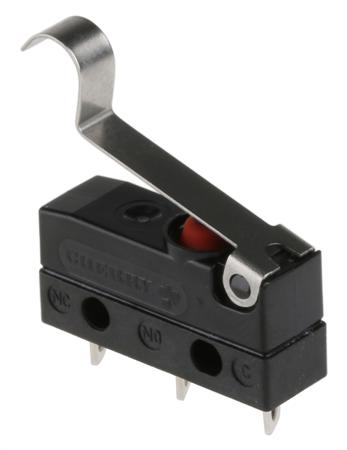

Simulated Roller Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC2C-A1SC
Enrgtech Part No:
ET13880374
Warranty:
Manufacturer
£ 3.72
Checking for live stock
Actuator Type:
Simulated Roller Lever
Terminal Type:
Solder
Contact Current Rating:
10.1 A @ 250 V ac
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
1.27 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +120°C
