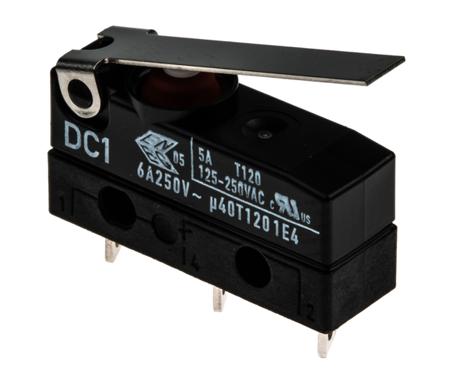

ZF Miniature Microswitch
The ZF DC series miniature Microswitch has a straight hinge lever actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 0.69N
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified

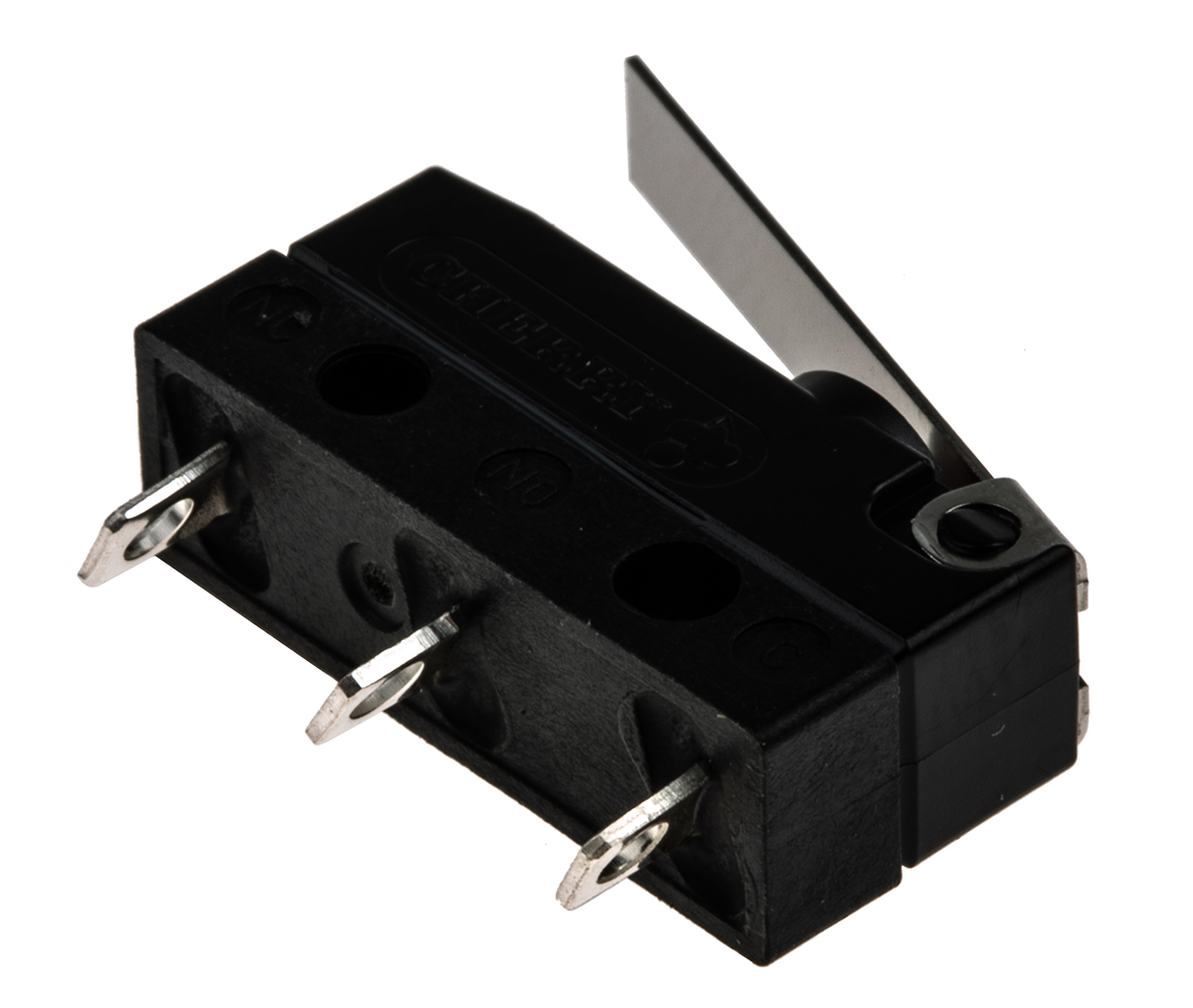

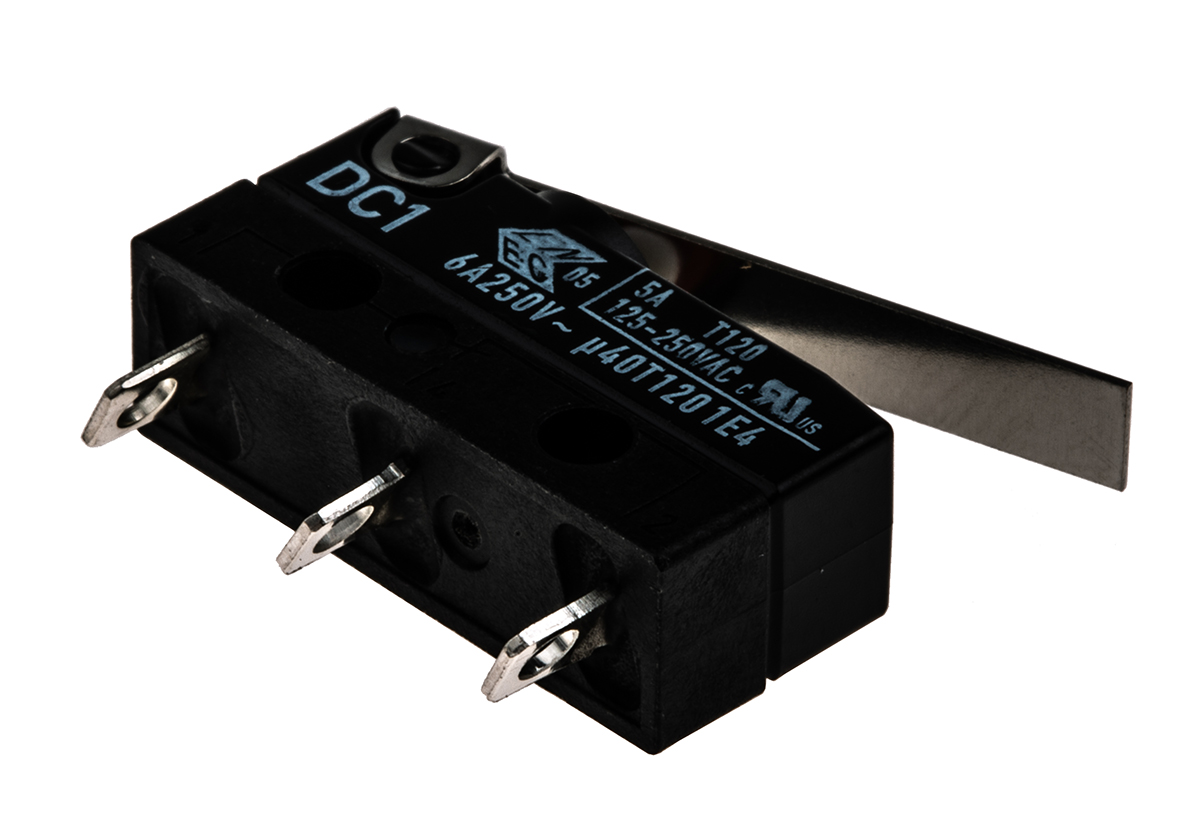

Hinge Lever Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC1C-A1LC
Enrgtech Part No:
ET13880381
Warranty:
Manufacturer
£ 3.81
Checking for live stock
Actuator Type:
Hinge Lever
Terminal Type:
Solder
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
0.69 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +120°C
