Standard V4 Microswitches (DB2 10A)
DB2 rated at 10A 250Vac; ENEC, EN61058
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm

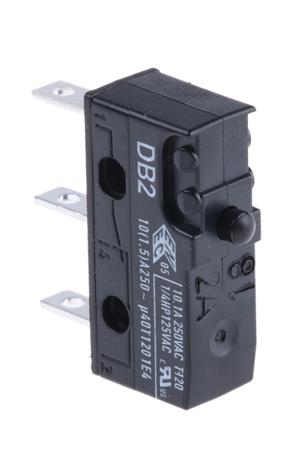

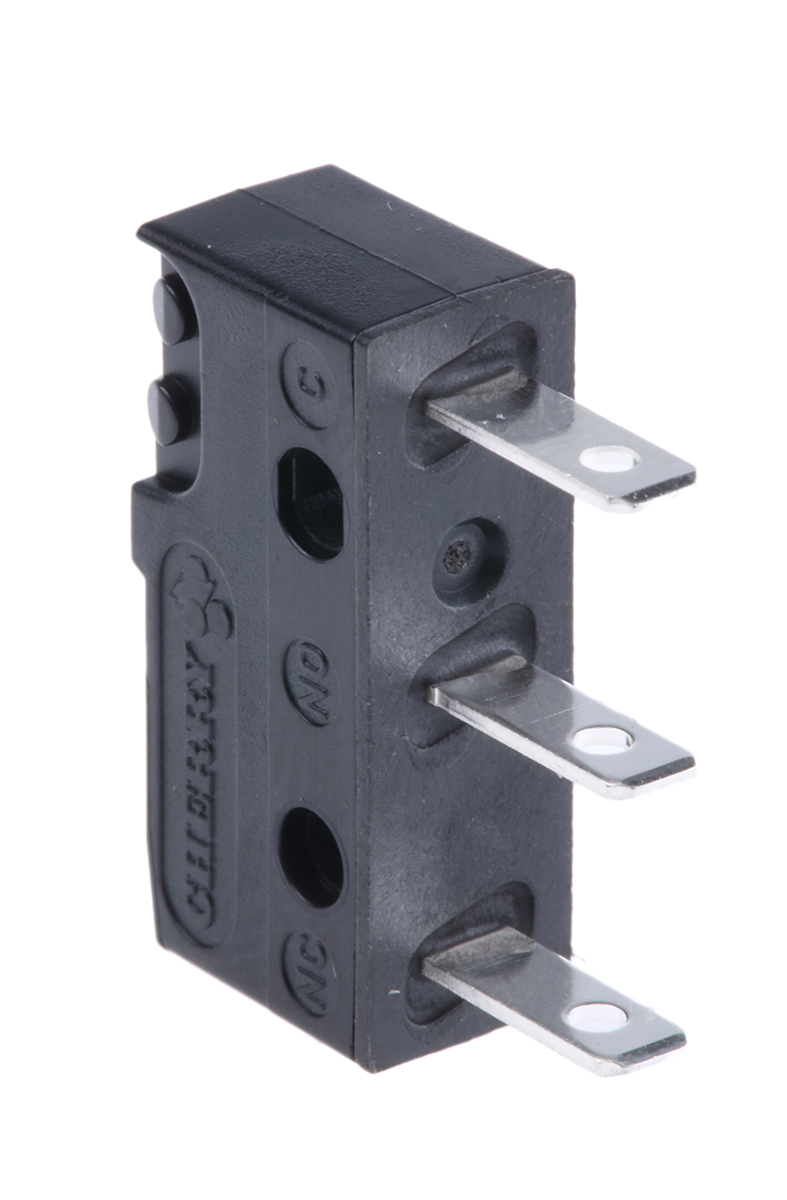

Button Micro Switch, Tab Terminal, 10.1 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DB2C-B1AA
Enrgtech Part No:
ET13880386
Warranty:
Manufacturer
£ 2.46
Checking for live stock
Actuator Type:
Button
Terminal Type:
Tab
Contact Current Rating:
10.1 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
2.45 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Gold, Silver Alloy
Mechanical Life:
15000000Operations
Operating Temperature Range:
-40 → +120°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=517858&DisplayLogo=False
