DB Series Microswitches
DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures.
Rated for currents up to 10 amp at 250VAC
Range of auxiliary actuators available
Mechanical life: up to 15 x 106 operations
Wide variety of terminal types available
V4 case size
Range of auxiliary actuators available
Mechanical life: up to 15 x 106 operations
Wide variety of terminal types available
V4 case size

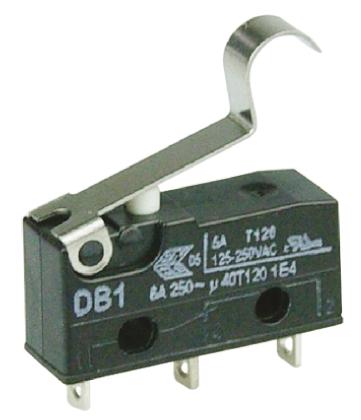

Simulated Roller Lever Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPDT
£ 2.44
Checking for live stock
Actuator Type:
Simulated Roller Lever
Terminal Type:
Solder
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.64 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Gold, Silver Alloy
Mechanical Life:
15000000Operations
Operating Temperature Range:
-40 → +120°C
