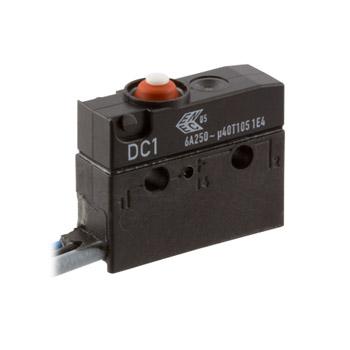

ZF Miniature Microswitch
The ZF DC series miniature Microswitch has a spherical head button actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 1.96N
Operating temperature ranges between -40°C and 105°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified
Operating temperature ranges between -40°C and 105°C
Housing material is PET/PBT
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified

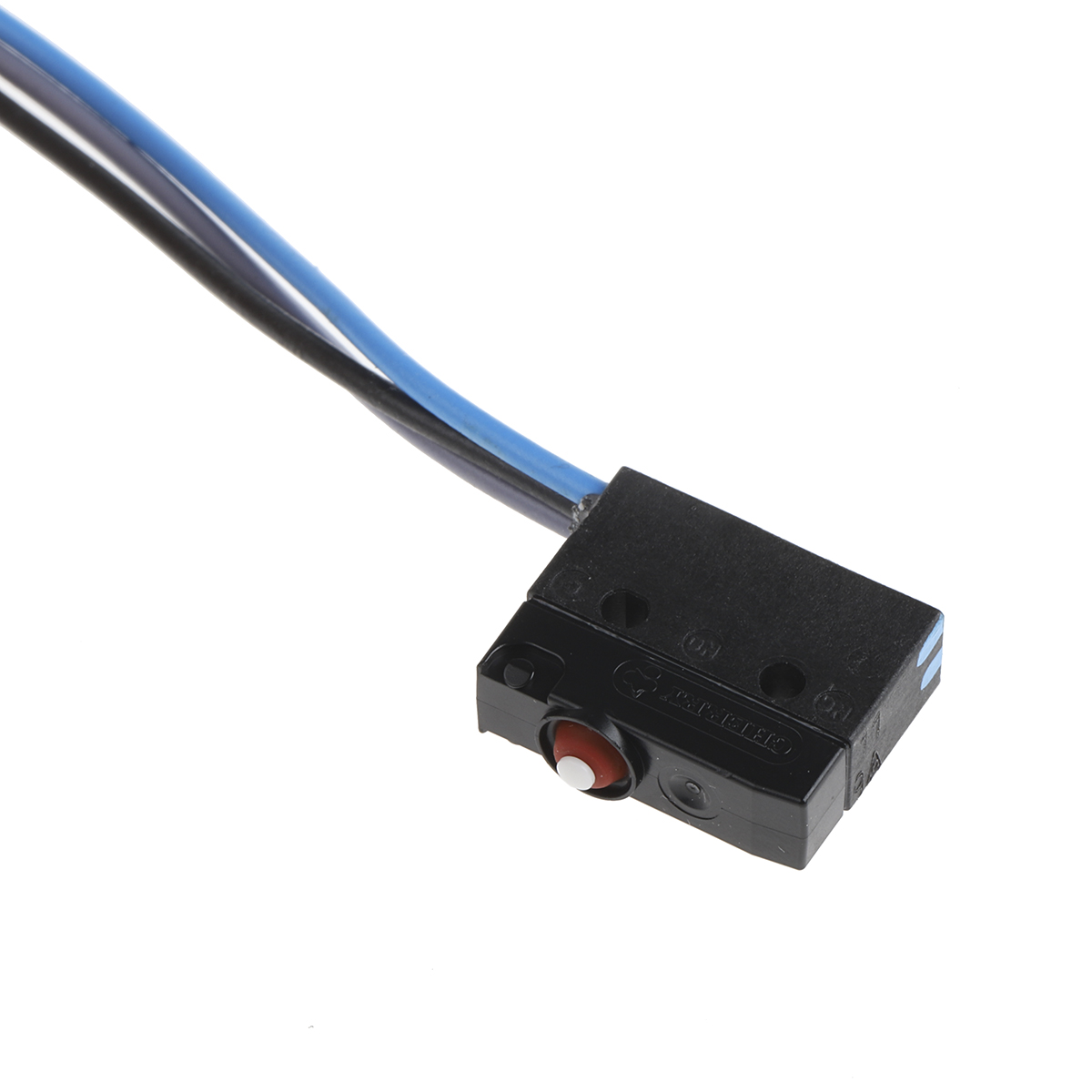

Button Micro Switch, Cable Terminal, 6 A @ 250 V ac, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC1C-C3AA
Enrgtech Part No:
ET13927111
Warranty:
Manufacturer
£ 7.18
Checking for live stock
Actuator Type:
Button
Terminal Type:
Cable
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
1.96 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+105°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +105°C
