IP67 V4 Microswitches (DC1 6A)
Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL

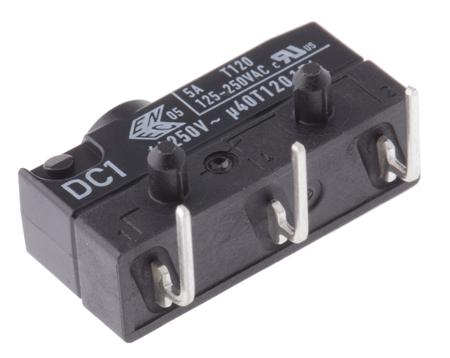

Button Micro Switch, Right Angle PCB Terminal, 6 A @ 250 V ac, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC1C-K8AA
Enrgtech Part No:
ET13927113
Warranty:
Manufacturer
£ 0.83
Checking for live stock
Actuator Type:
Button
Terminal Type:
Right Angle PCB
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
1.96 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +120°C
