IP67 V4 Microswitches (DC2 10A)
IP67 V4 Microswitches (DC2 10A)
Sealed actuator to IP67
Contact rating 10A
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm)
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
SPDT contact configuration
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm
Dimensions: H11.65 x W20 x D6.5mm Approvals
ENEC, UL
Sealed actuator to IP67
Contact rating 10A
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm)
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
SPDT contact configuration
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm
Dimensions: H11.65 x W20 x D6.5mm Approvals
ENEC, UL

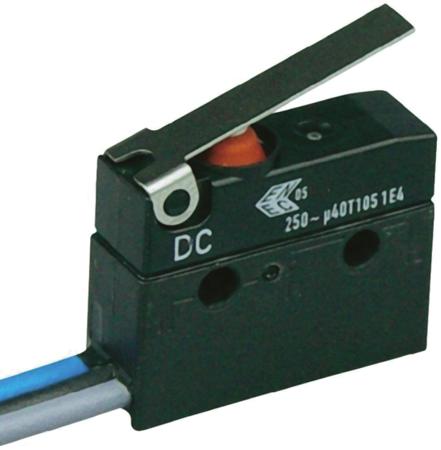

Lever Micro Switch, Lead Terminal, 10 A @ 250 V ac, SP-CO, IP67
Manufacturer:
ZF
Manufacturer Part No:
DC2C-C3LC
Enrgtech Part No:
ET13927115
Warranty:
Manufacturer
£ 7.14
Checking for live stock
Actuator Type:
Lever
Terminal Type:
Lead
Contact Current Rating:
10 A @ 250 V ac
Contact Configuration:
SP-CO
IP Rating:
IP67
Operating Force:
340 cN
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Switch Housing:
V0 Housing
Contact Material:
AgNi
Case Material:
PBT/PET
Mechanical Life:
1000000Operations
