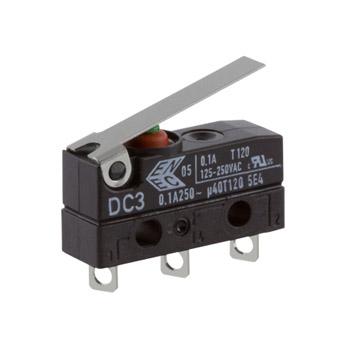

ZF Subminiature Microswitch
The ZF DC series subminiature Microswitch has a short straight lever actuator and a contact rating of 0.1A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 0.78N
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Solder lug type termination
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified
Operating temperature ranges between -40°C and 120°C
Housing material is PET/PBT
Solder lug type termination
Mechanical life is more than 1x106 operations Certifications IP67 rated
ENEC certified
UL approved
KEMA certified

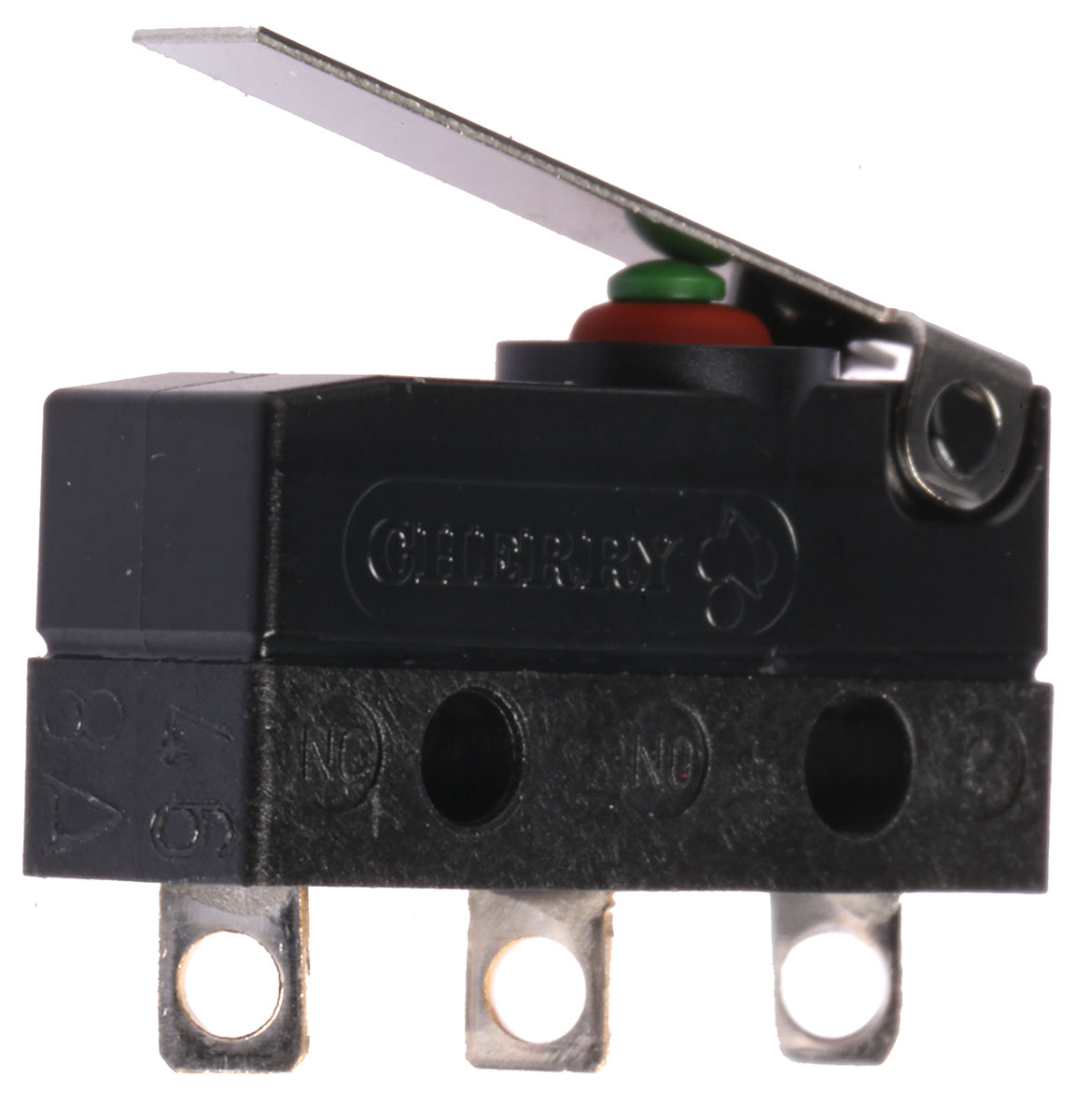

Short Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP6K7
Manufacturer:
ZF
Manufacturer Part No:
DC3C-A1LB
Enrgtech Part No:
ET13927119
Warranty:
Manufacturer
£ 1.02
Checking for live stock
Actuator Type:
Short Lever
Terminal Type:
Solder
Contact Current Rating:
100 mA @ 30 V dc
Contact Configuration:
SPDT
IP Rating:
IP6K7
Operating Force:
0.78 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Gold
Mechanical Life:
1000000Operations
Operating Temperature Range:
-40 → +120°C
