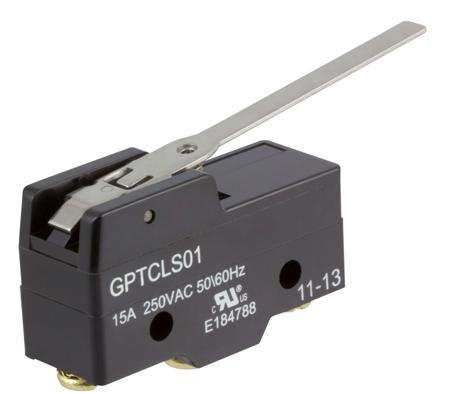

ZF Microswitch
The ZF GP series Microswitch has a long straight lever actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating forces is 0.67N
Ultra small movement differential
Screw type termination
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054
Ultra small movement differential
Screw type termination
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054

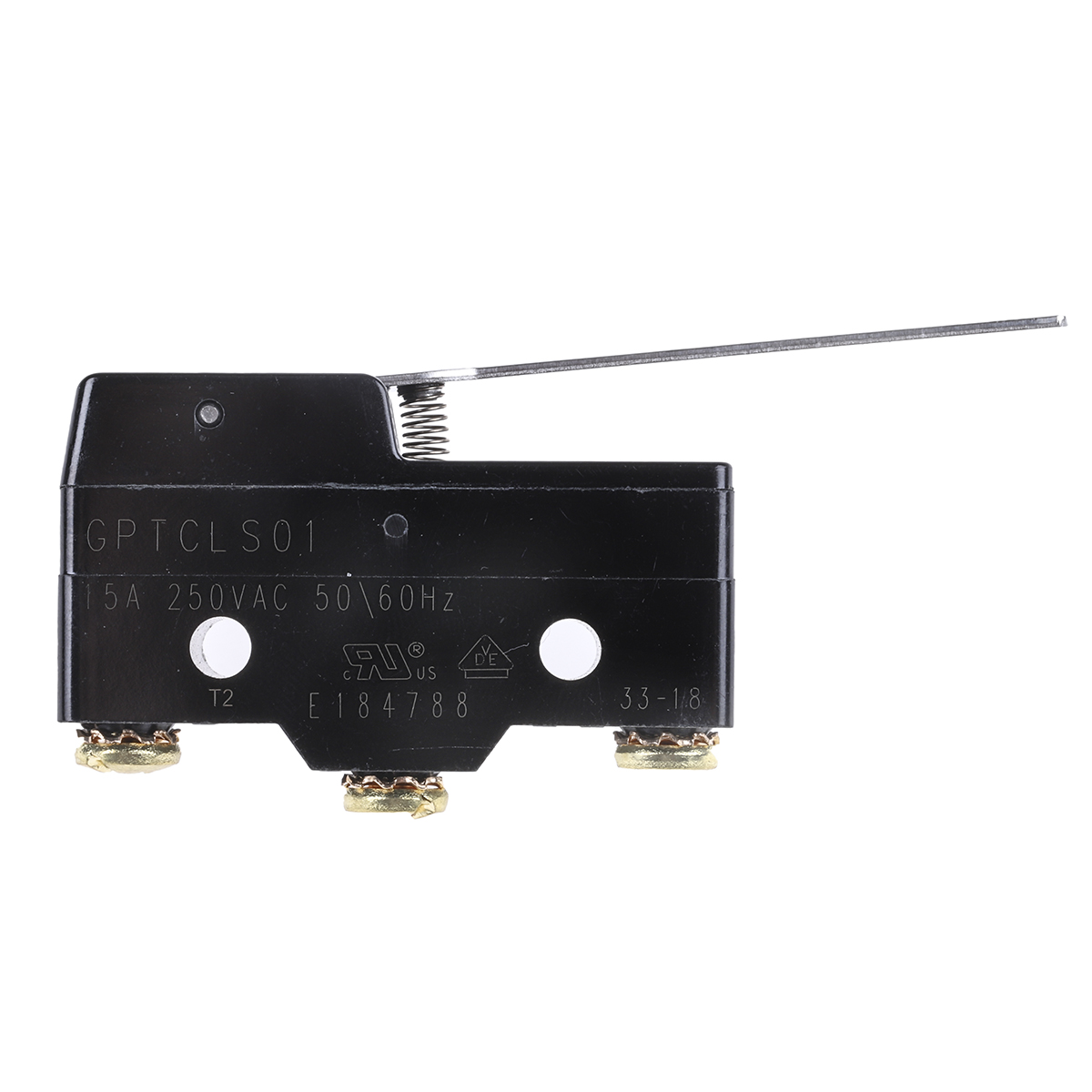

Long Hinge Lever Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
GPTCLS01
Enrgtech Part No:
ET13927134
Warranty:
Manufacturer
£ 7.47
Checking for live stock
Actuator Type:
Long Hinge Lever
Terminal Type:
Screw
Contact Current Rating:
15 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.67 N
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Release Force:
0.14N
Operating Temperature Range:
-20 → +85°C
