D4 Series 0.1A, 16A & 21A
D4 series miniature microswitches are a highly reliable switch that offers a high level of repeat accuracy. The D4 series has high contact stability thanks to application-specific contact materials for switching currents of 100 mA to 21 A at 250 V ac.
Polyester casing
Snap action
V3 case size
EN 61058 and UL1054-approved
Cadmium-free contact material
Mechanical life ≥ 2x107 (3 x 106 for high temperature versions)
Snap action
V3 case size
EN 61058 and UL1054-approved
Cadmium-free contact material
Mechanical life ≥ 2x107 (3 x 106 for high temperature versions)

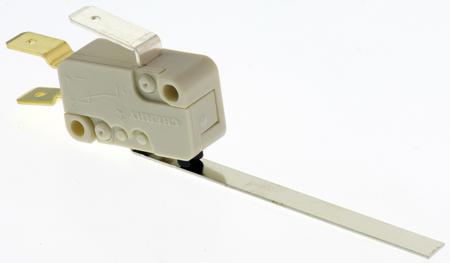

Long Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
D453-V3LL
Enrgtech Part No:
ET13981426
Warranty:
Manufacturer
£ 2.88
Checking for live stock
Actuator Type:
Long Leaf Lever
Terminal Type:
Tab
Contact Current Rating:
16 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.88 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Case Material:
Thermoplastic PET
Operating Temperature Range:
-40 → +85°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=46814&DisplayLogo=False
