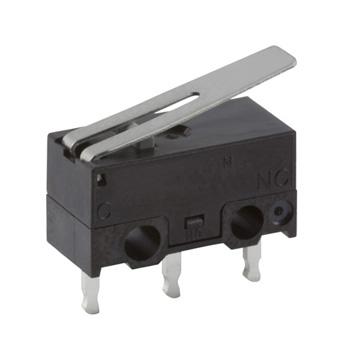

ZF Microswitch
The ZF DG series subminiature Microswitch has a straight lever actuator and a contact rating of 50mA at 30VDC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 0.44N
Operating temperature ranges between -25°C and 85°C
Housing material is PBT
PCB pin type termination
Mechanical life is more than 1x106 operations
Switch body moulded Certifications IP67 rated
CSA certified
UL approved
Operating temperature ranges between -25°C and 85°C
Housing material is PBT
PCB pin type termination
Mechanical life is more than 1x106 operations
Switch body moulded Certifications IP67 rated
CSA certified
UL approved

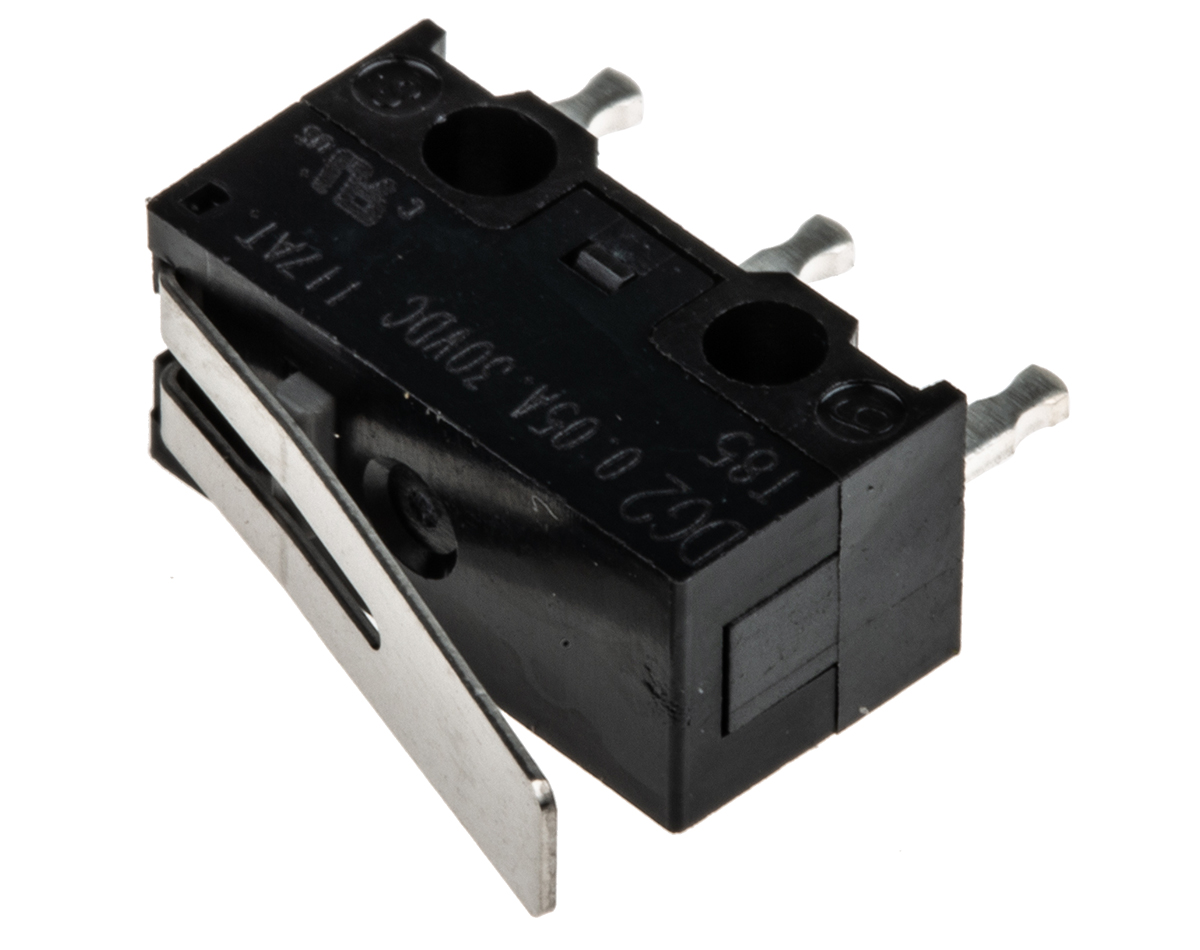

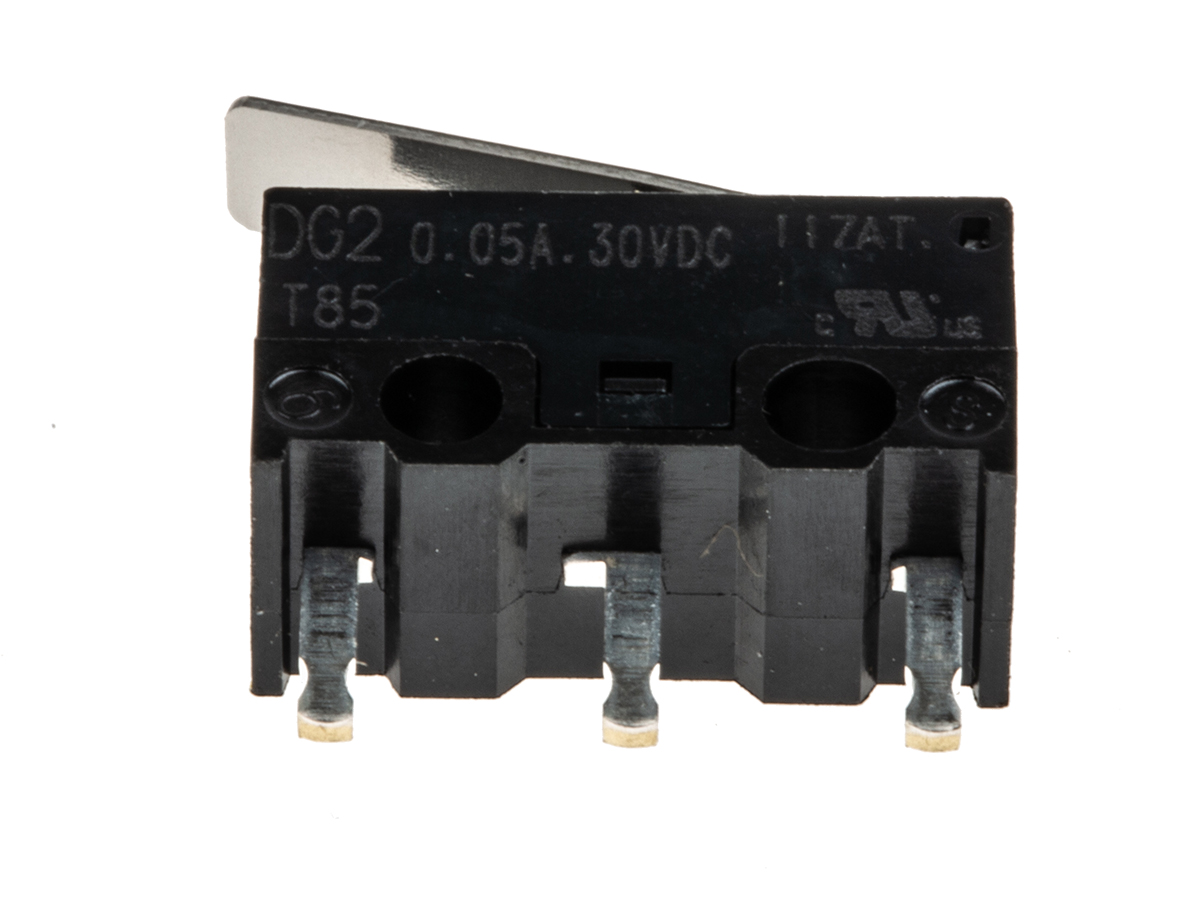

Hinge Lever Micro Switch, PCB Terminal, 50 mA @ 30 V dc, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DG23-B1LA
Enrgtech Part No:
ET13981450
Warranty:
Manufacturer
£ 2.59
Checking for live stock
Actuator Type:
Hinge Lever
Terminal Type:
PCB
Contact Current Rating:
50 mA @ 30 V dc
Contact Configuration:
SPDT
Operating Force:
0.44 N
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+85°C
Contact Material:
Gold Plated
Mechanical Life:
1000000Operations
Operating Temperature Range:
-25 → +85°C
