ZF Push Button
The ZF E69 series pushbutton has a plunger actuator and a contact rating of 10A at 250VAC. This is a highly reliable SP contact configuration button offers a high level of repeat accuracy.
Features and Benefits
Choice of momentary, push-pull (reset) and cheat interlock
Snap in mounting
Long life coil spring and snap action mechanism
Mechanical life is more than 2x105 operations
Operating temperature ranges between -40°C and 85°C Certifications UL94V
UL E23301
VDE approved
Snap in mounting
Long life coil spring and snap action mechanism
Mechanical life is more than 2x105 operations
Operating temperature ranges between -40°C and 85°C Certifications UL94V
UL E23301
VDE approved

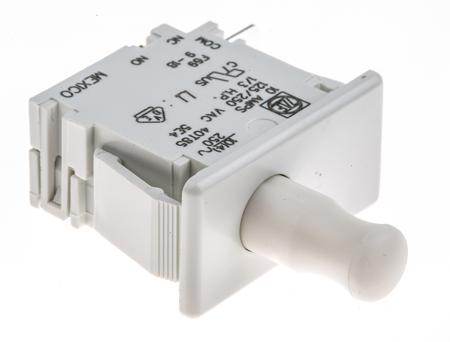

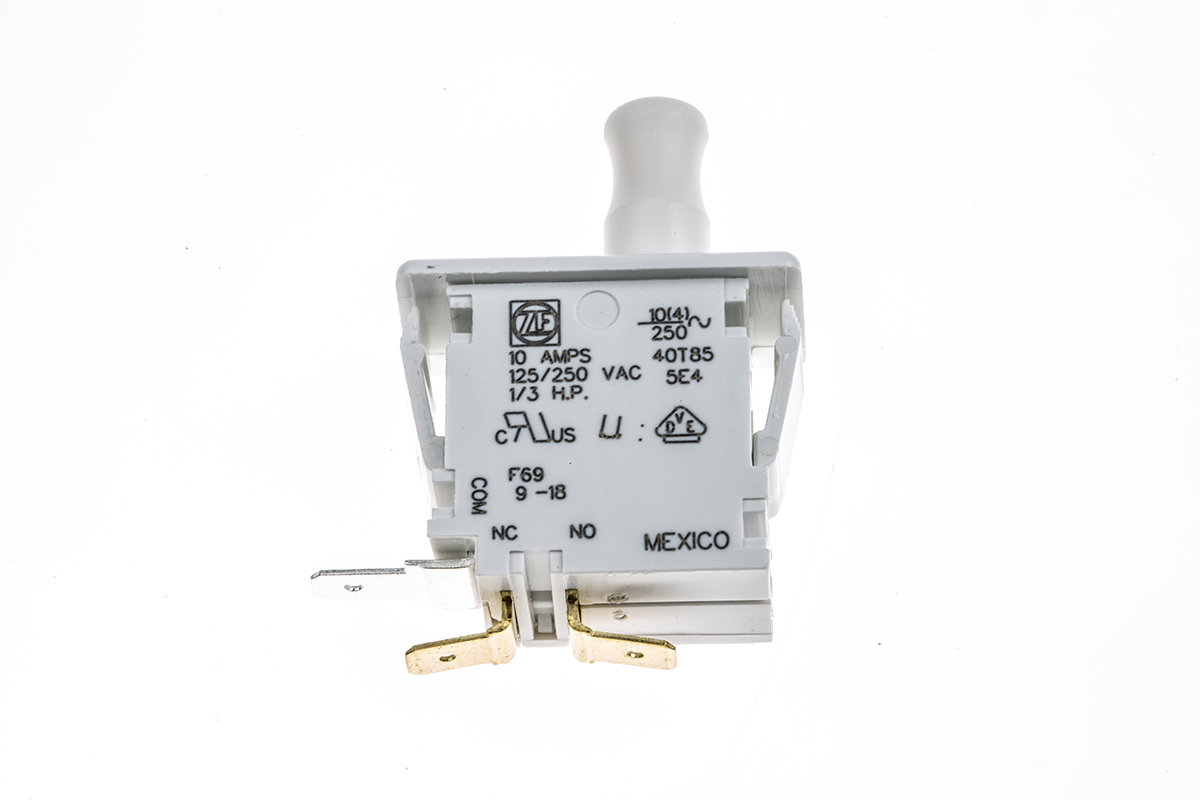

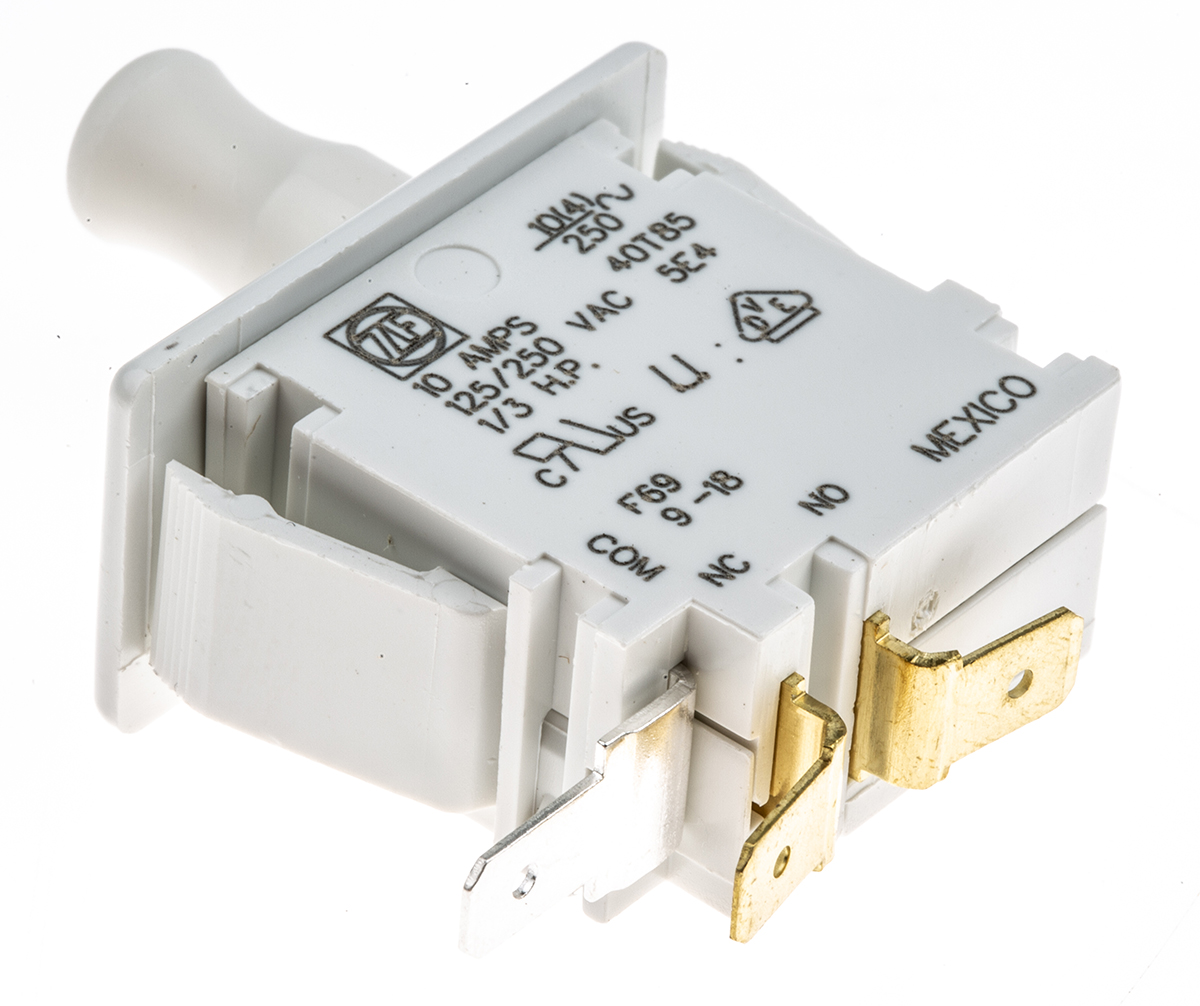

Plunger Micro Switch, Solder Terminal, 10 A, SPDT
Manufacturer:
ZF
Manufacturer Part No:
F69-65A
Enrgtech Part No:
ET13981453
Warranty:
Manufacturer
£ 7.35
Checking for live stock
Actuator Type:
Plunger
Terminal Type:
Solder
Contact Current Rating:
10 A
Contact Configuration:
SPDT
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+85°C
Mechanical Life:
2 x 10^5Operations
Operating Temperature Range:
-40 → +85°C
