Standard V4 Microswitches (DB3 100mA)
DB3 rated at 100mA 250Vac; ENEC, EN61058
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
Silver-nickel contacts
SPDT contact configuration
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
Silver-nickel contacts
SPDT contact configuration
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm

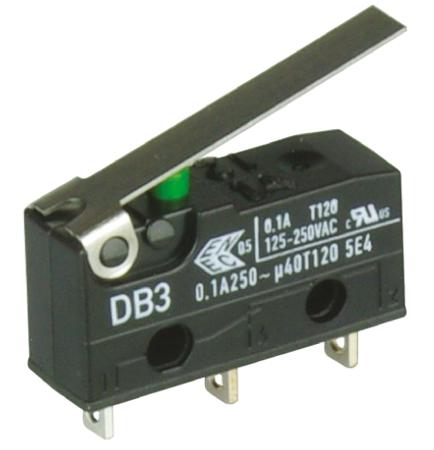

Hinge Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DB3C-A1LC
Enrgtech Part No:
ET14035493
Warranty:
Manufacturer
£ 2.59
Checking for live stock
Actuator Type:
Hinge Lever
Terminal Type:
Solder
Contact Current Rating:
100 mA @ 30 V dc
Contact Configuration:
SPDT
Operating Force:
0.49 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Gold, Silver Alloy
Mechanical Life:
15000000Operations
Operating Temperature Range:
-40 → +120°C
