IP67 V4 Microswitches (DC1 6A)
Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm Approvals
ENEC; UL

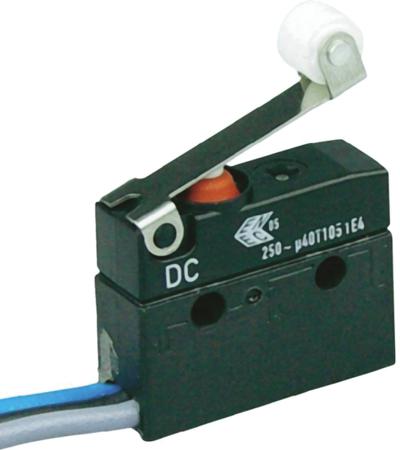

Roller Micro Switch, Lead Terminal, 6 A @ 250 V ac, SP-CO, IP67
Manufacturer:
ZF
Manufacturer Part No:
DC1C-C4RB
Enrgtech Part No:
ET14035495
Warranty:
Manufacturer
£ 8.11
Checking for live stock
Actuator Type:
Roller
Terminal Type:
Lead
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SP-CO
IP Rating:
IP67
Operating Force:
200 cN
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Switch Housing:
V0 Housing
Contact Material:
AgNi
Case Material:
PBT/PET
Mechanical Life:
1000000Operations
