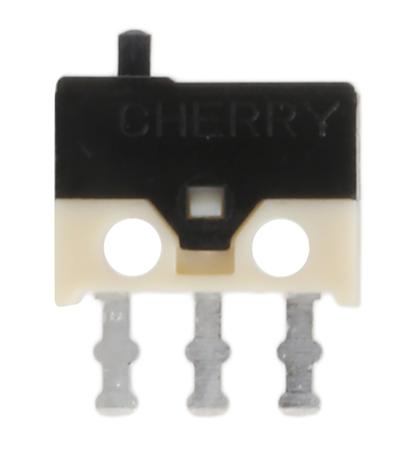

Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
Button Subminiature Micro Switch, Solder Terminal, 500 mA @ 30 V dc, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DH2C-B1AA
Enrgtech Part No:
ET14035505
Warranty:
Manufacturer
£ 3.86
Checking for live stock
Actuator Type:
Button
Terminal Type:
Solder
Contact Current Rating:
500 mA @ 30 V dc
Contact Configuration:
SPDT
Operating Force:
0.88 N
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+70°C
Contact Material:
Gold Plated Brass
Operating Temperature Range:
-25 → +70°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=46914&DisplayLogo=False
