GP Series (20A)
Available in small button, short roller and long lever actuator versions
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life of up to 1 million cycles
20A current rating
Temperature rating: -20ºC to 85ºC
Case & cover material: Phenolic
Low operating forces
Actuator material: Stainless
Housing Dimensions: Height: Length: 49.6mm Height: 22mm Width:17.6mm
Metric mounting holes
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life of up to 1 million cycles
20A current rating
Temperature rating: -20ºC to 85ºC
Case & cover material: Phenolic
Low operating forces
Actuator material: Stainless
Housing Dimensions: Height: Length: 49.6mm Height: 22mm Width:17.6mm
Metric mounting holes

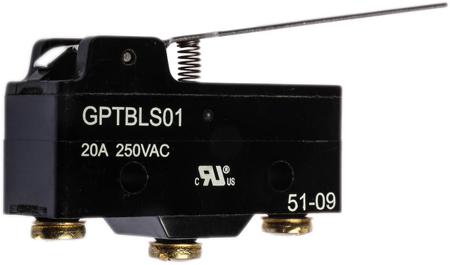

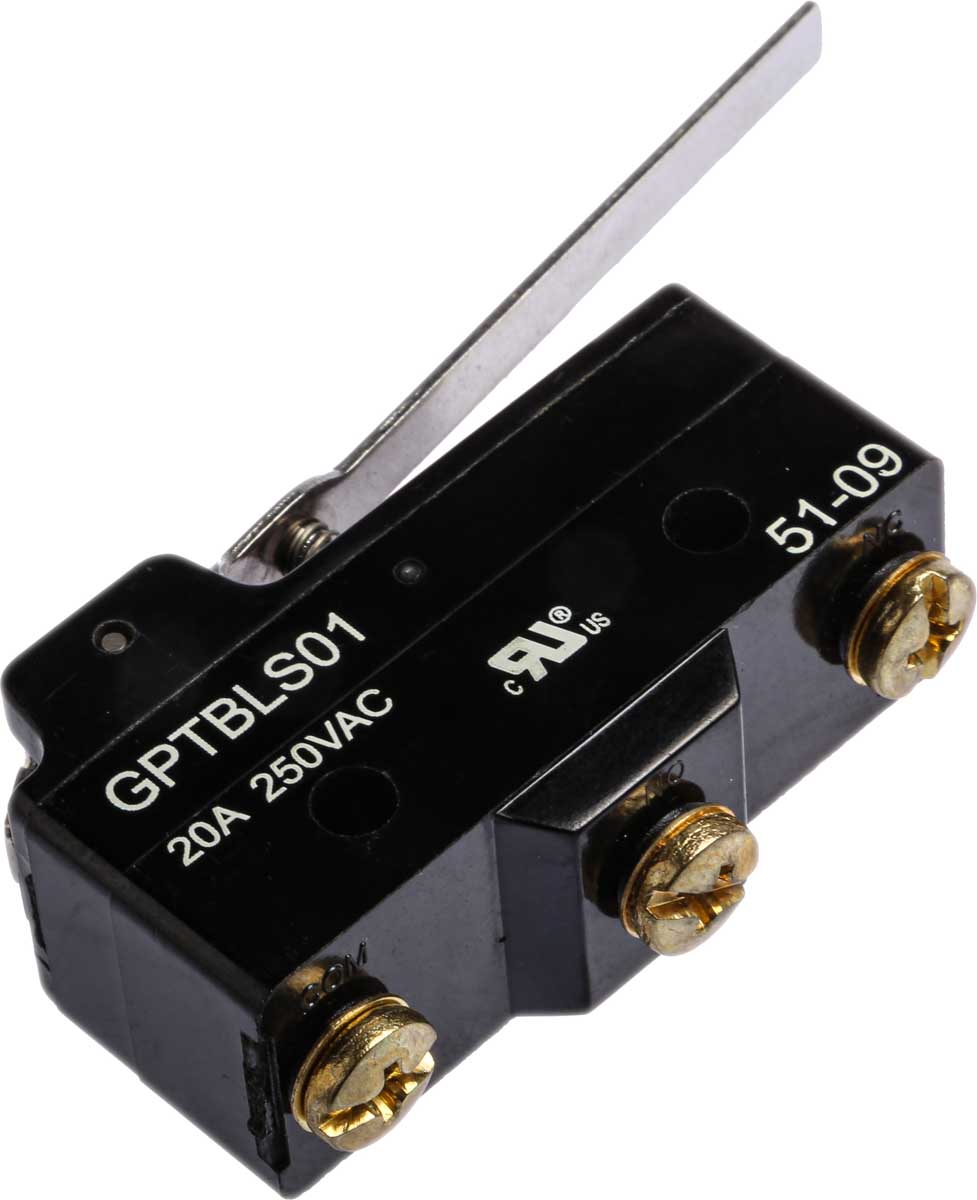

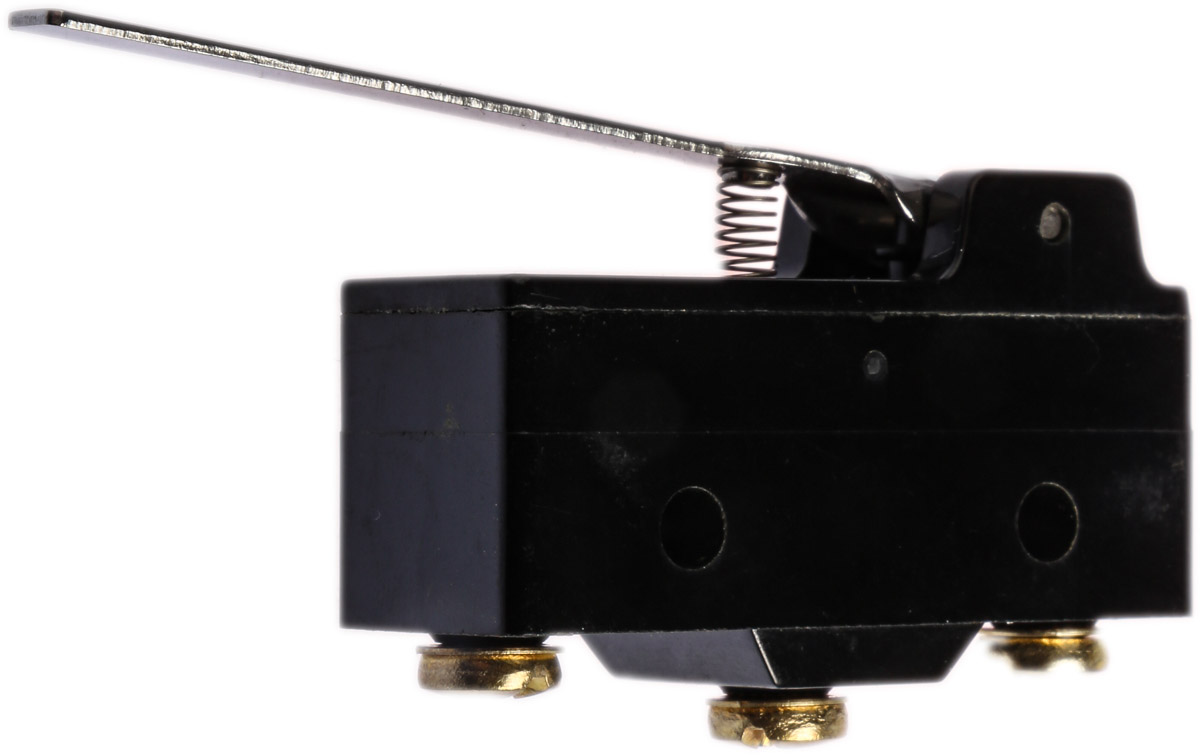

Long Hinge Lever Micro Switch, Screw Terminal, 20 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
GPTBLS01
Enrgtech Part No:
ET14035511
Warranty:
Manufacturer
£ 16.12
Checking for live stock
Actuator Type:
Long Hinge Lever
Terminal Type:
Screw
Contact Current Rating:
20 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.78 N
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Release Force:
0.14N
Operating Temperature Range:
-20 → +85°C
