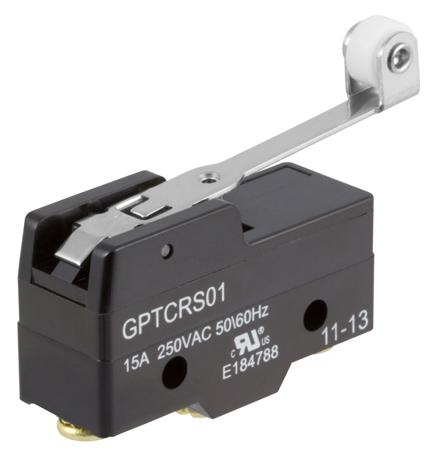

ZF Microswitch
The ZF GP series Microswitch has a long roller actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating forces is 0.97N
Screw terminal type termination
Ultra small movement differential

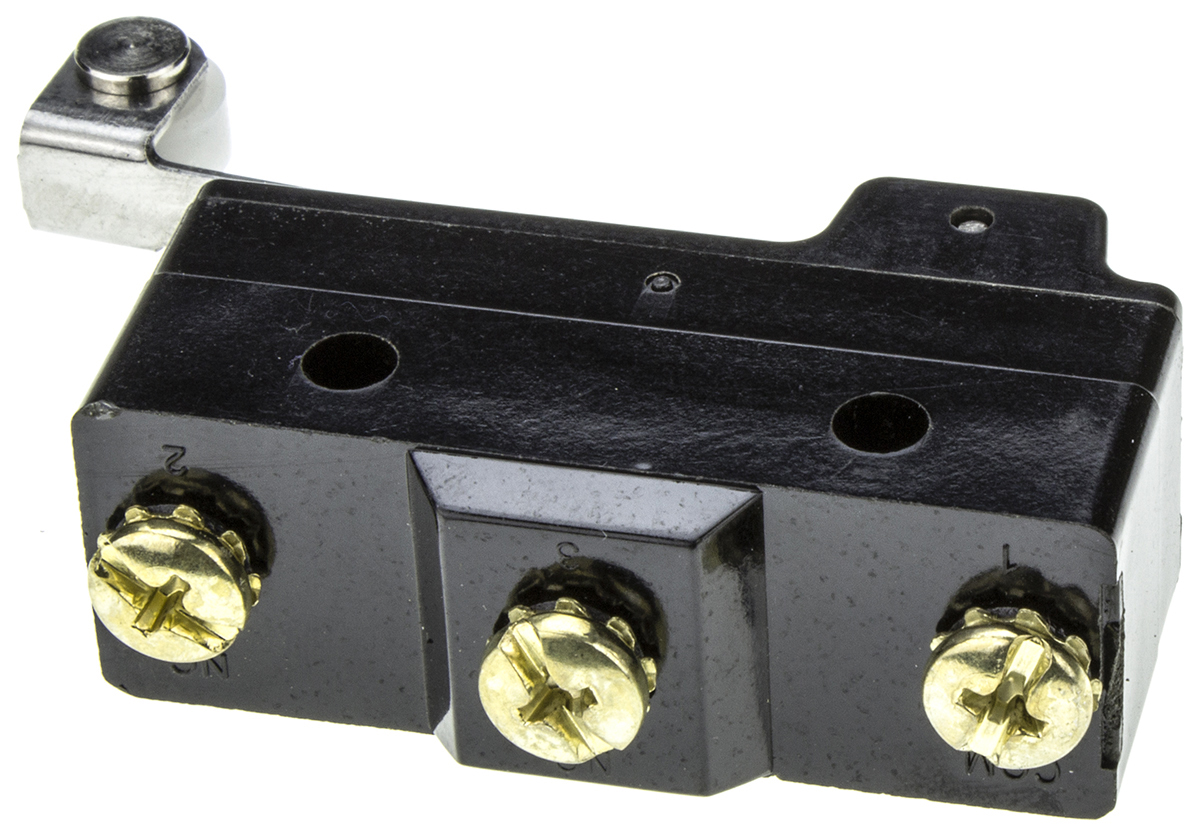

Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054
Screw terminal type termination
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054

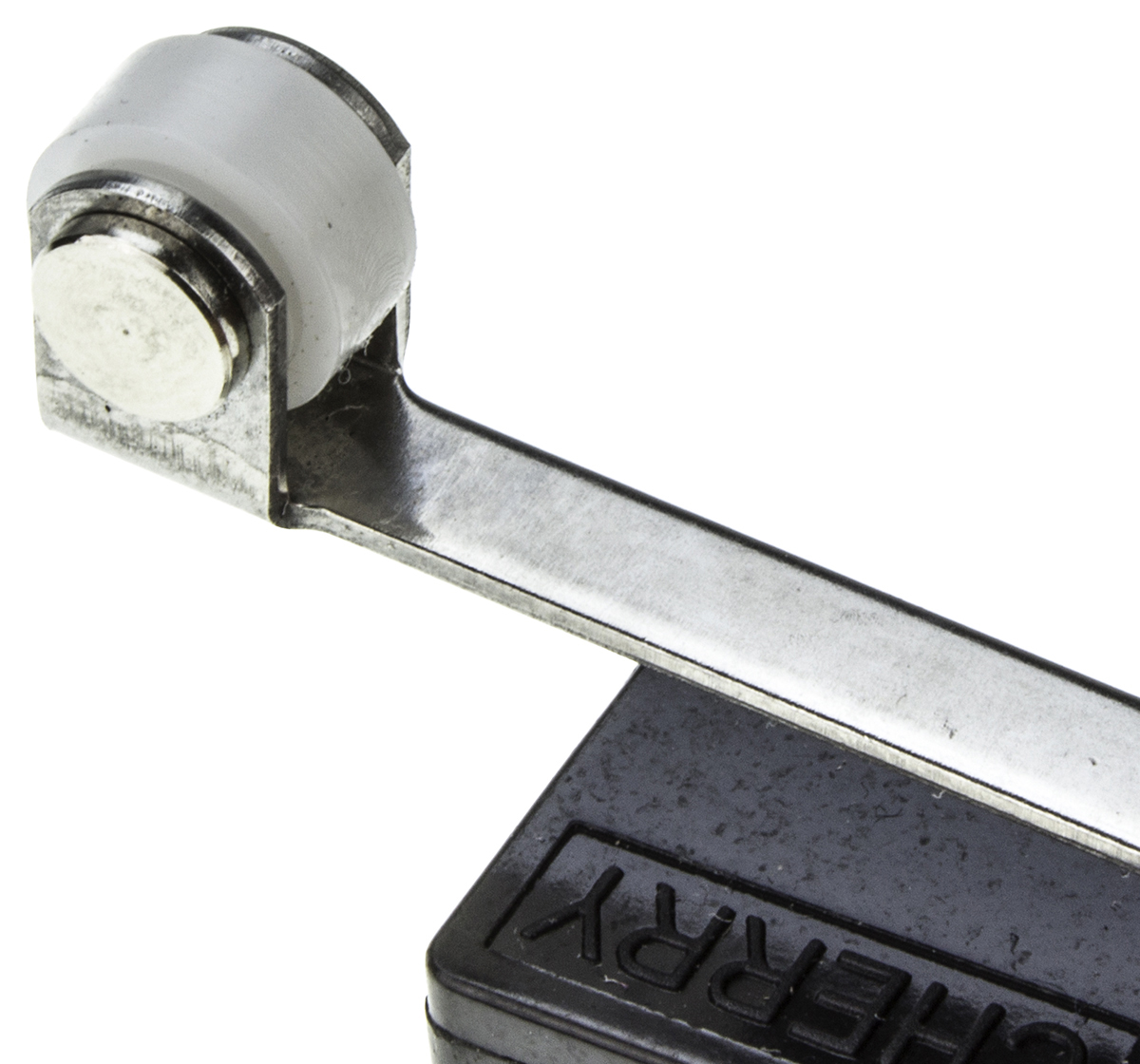

Long Roller Lever Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
GPTCRS01
Enrgtech Part No:
ET14035515
Warranty:
Manufacturer
£ 11.27
Checking for live stock
Actuator Type:
Long Roller Lever
Terminal Type:
Screw
Contact Current Rating:
15 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.97 N
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Release Force:
0.22N
Operating Temperature Range:
-20 → +85°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=517876&DisplayLogo=False
