DB Series Microswitches
DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures.
Rated for currents up to 10 amp at 250VAC
Range of auxiliary actuators available
Mechanical life: up to 15 x 106 operations
Wide variety of terminal types available
V4 case size
Range of auxiliary actuators available
Mechanical life: up to 15 x 106 operations
Wide variety of terminal types available
V4 case size

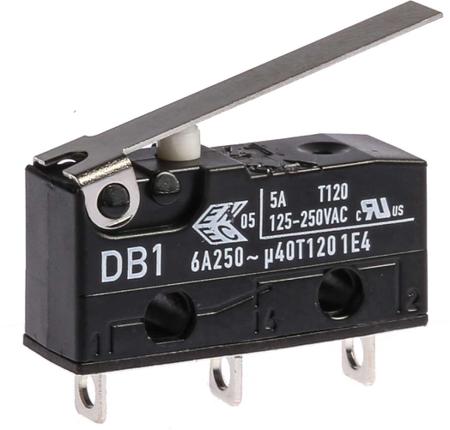

Lever Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DB1C-A1LC
Enrgtech Part No:
ET14134923
Warranty:
Manufacturer
£ 2.51
Checking for live stock
Actuator Type:
Lever
Terminal Type:
Solder
Contact Current Rating:
6 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
0.49 N
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+120°C
Contact Material:
Gold, Silver Alloy
Mechanical Life:
15000000Operations
Operating Temperature Range:
-40 → +120°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=517763&DisplayLogo=False
