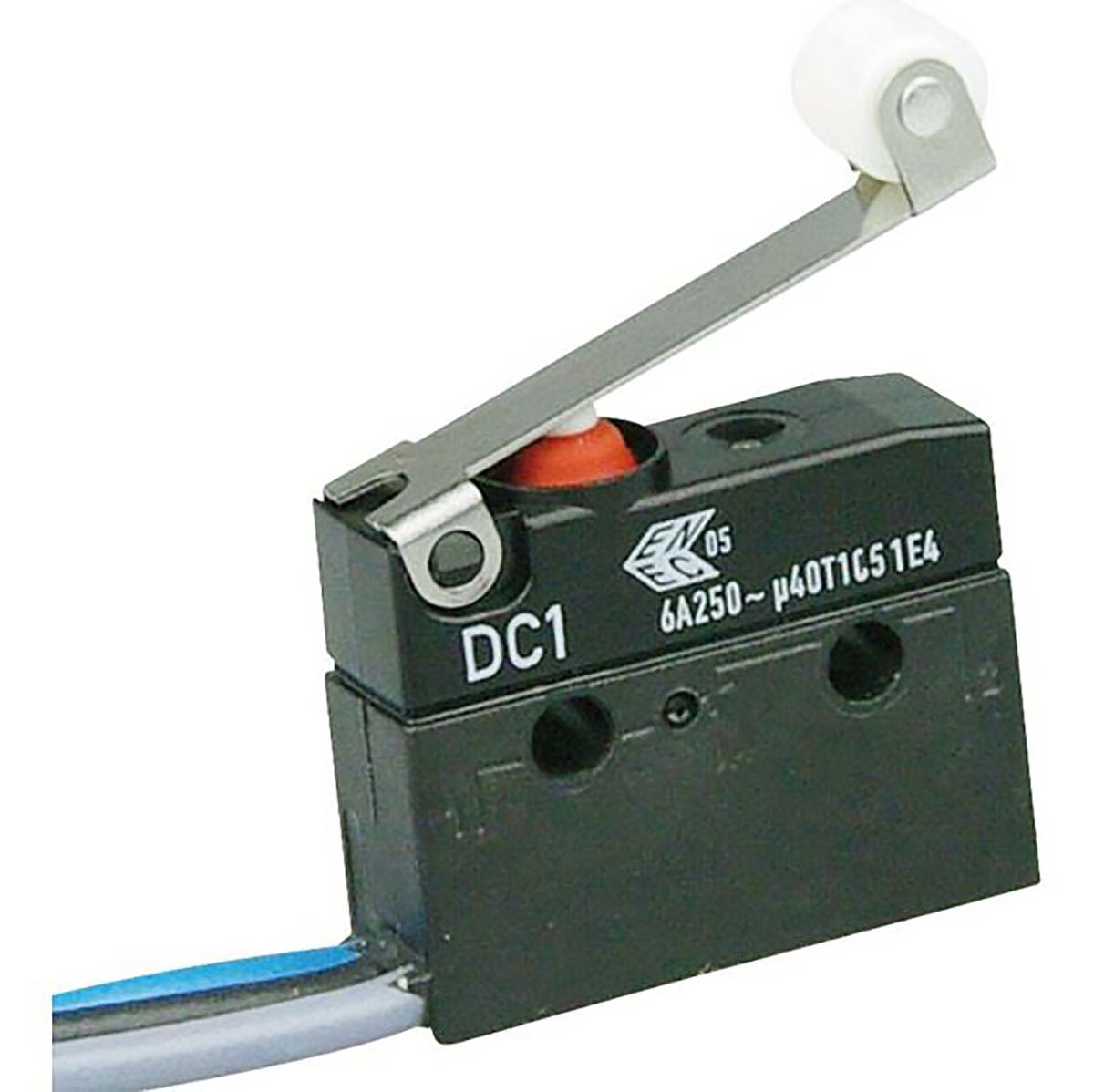

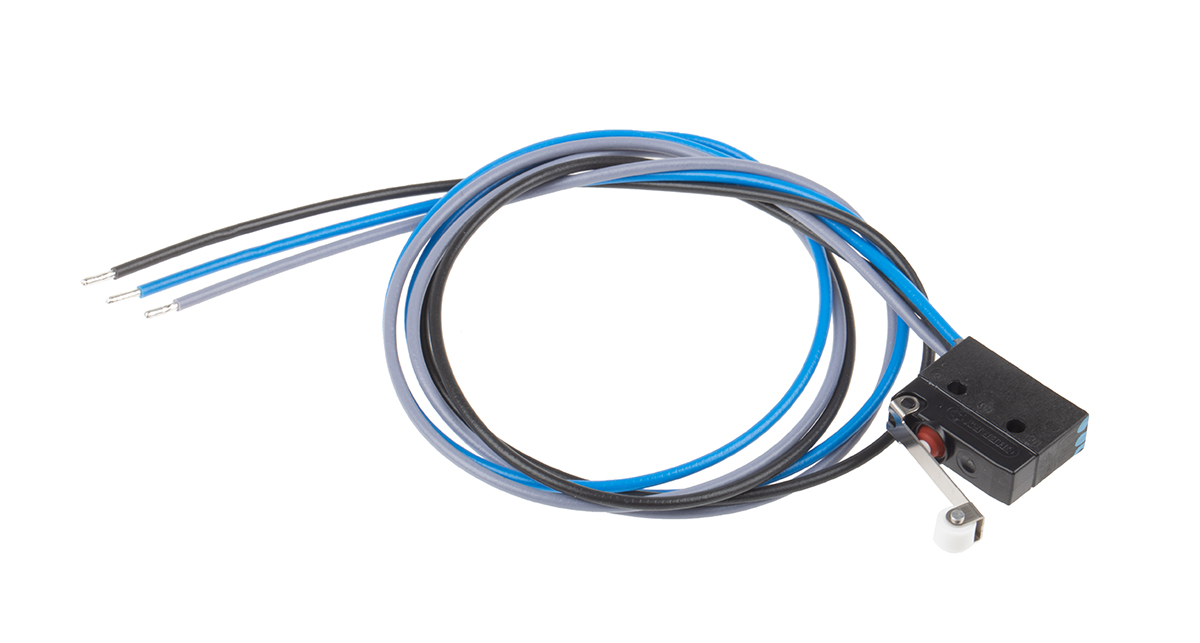

dc1c-c3rc SPDT-NO/NC Lever Microswitch, 6 A @ 250 V ac

IP67 V4 Microswitches (DC1 6A) Sealed switch with IP67 protection Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm 2 ) lead Housing material PET/PBT (UL 94V-0) POM (T85); PBT (T120) actuator Operating temperature range -40 → 120°C Maximum operating temperature for pre-wired versions 105°C Ice-free lever option suitable for operation in cold damp environments where a pivoted lever may freeze up Height 11.65mm, Width 20mm, Depth 6.5mm Approvals ENEC; UL Approvals ENEC; UL

For more information please check the datasheets.

ZF DC1C-C3RC SPDT-NO/NC Lever Microswitch, 6 A @ 250 V ac

Name: SPDT-NONC Lever Microswitch, 6 A @ 250 V ac
Brand: ZF
SKU: ET14134928
Availability: InStock

Manufacturer:

Manufacturer Part No:

DC1C-C3RC

Enrgtech Part No:

ET14134928

Warranty:

Manufacturer

£ 6.80

Checking for live stock

Operating Force:

0.78 N

Minimum Operating Temperature:

-40°C

IP Rating:

IP6K7

Contact Current Rating:

6 A @ 250 V ac

Operating Temperature Range:

-40 → +105°C

Contact Configuration:

SPDT

Actuator Type:

Roller Lever

Mechanical Life:

1000000Operations

Maximum Operating Temperature:

+105°C

Terminal Type:

Through Hole

Contact Material:

Silver Alloy

Product Drawing(Technical Reference)

Rebrand Information(Technical Reference)

DC Series Sealed Snap Switch Product Data Sheet(Technical Reference)

ZF DC1C-C3RC SPDT-NO/NC Lever Microswitch, 6 A @ 250 V ac
