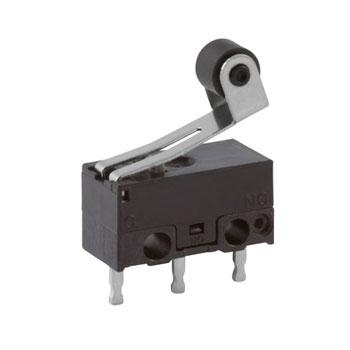

ZF Microswitch
The ZF DG series subminiature Microswitch has a roller lever actuator and a contact rating of 3A at 125VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 0.59N
Operating temperature ranges between -25°C and 85°C
Housing material is PBT
PCB pin type termination
Mechanical life is more than 1x106 operations
Switch body moulded Certifications IP67 rated
CSA certified
UL approved
Operating temperature ranges between -25°C and 85°C
Housing material is PBT
PCB pin type termination
Mechanical life is more than 1x106 operations
Switch body moulded Certifications IP67 rated
CSA certified
UL approved

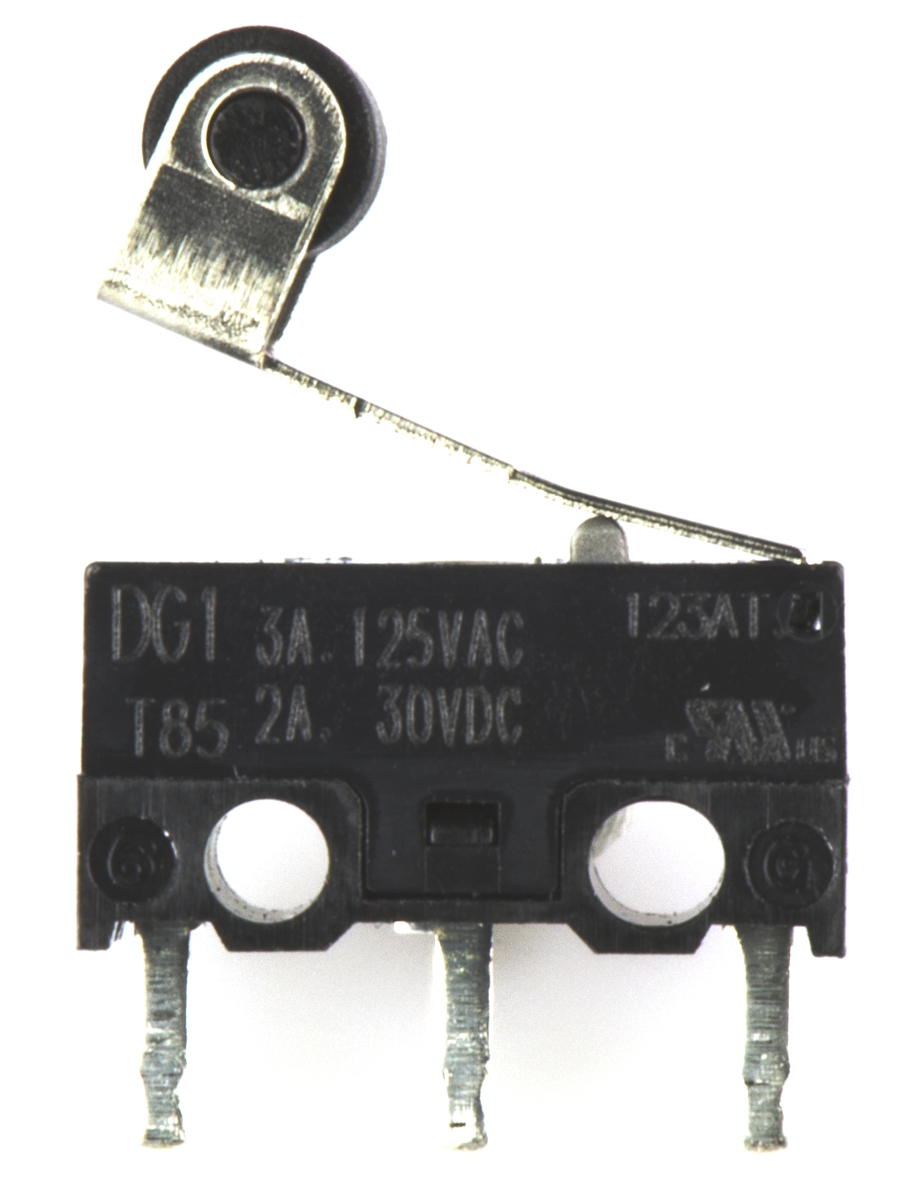

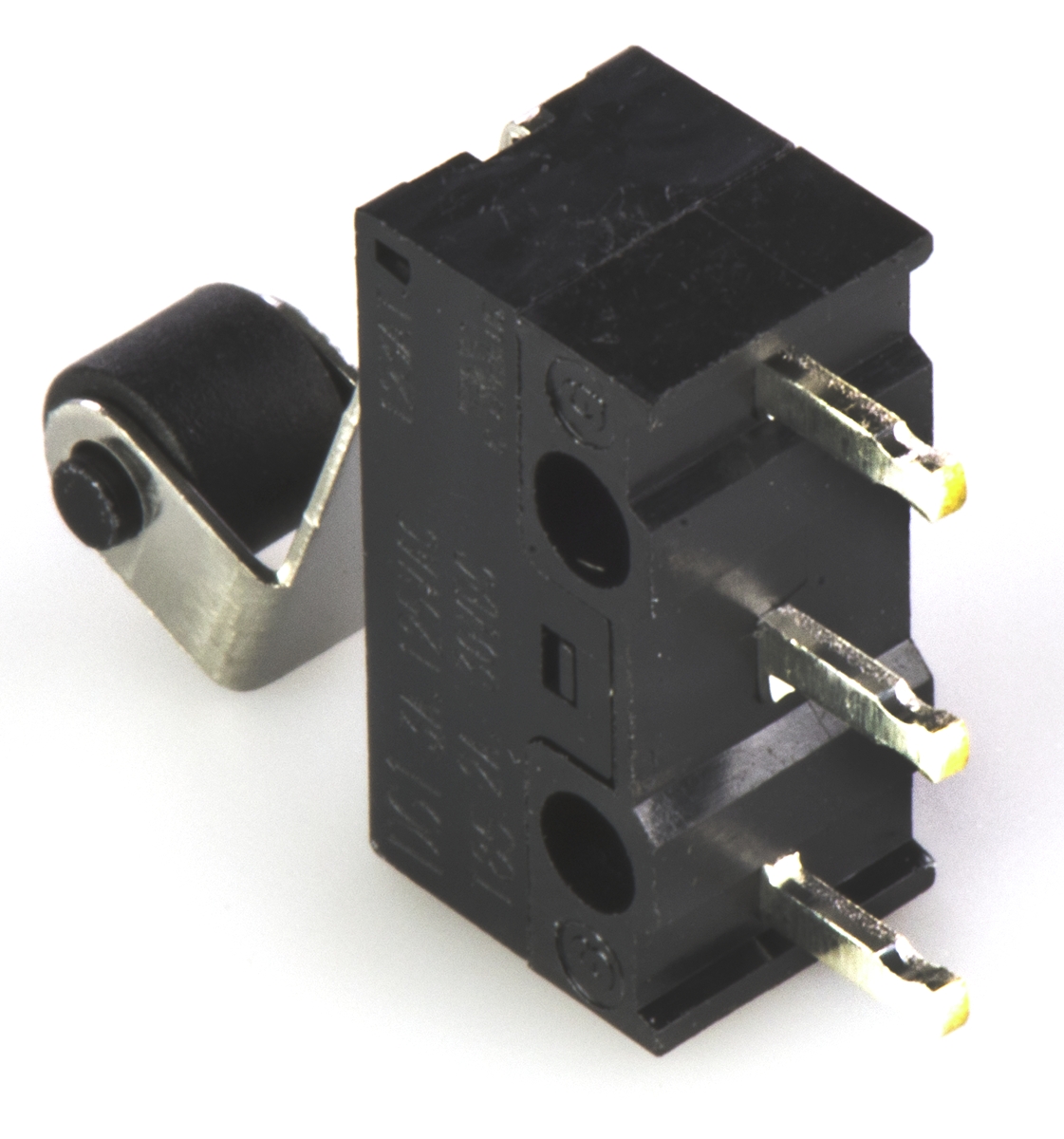

Roller Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DG13-B1RA
Enrgtech Part No:
ET14134938
Warranty:
Manufacturer
£ 0.91
Checking for live stock
Actuator Type:
Roller Lever
Terminal Type:
PCB
Contact Current Rating:
3 A @ 125 V ac
Contact Configuration:
SPDT
Operating Force:
0.59 N
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Operating Temperature Range:
-25 → +85°C
3D Model:
