Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals

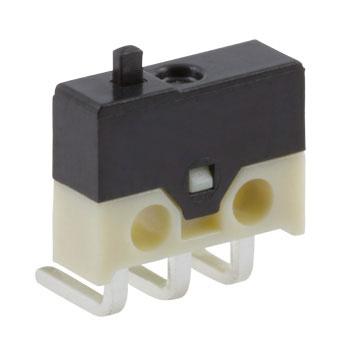

Button Subminiature Micro Switch, Left Angle PCB Terminal, 500 mA @ 30 V dc, SPDT
Manufacturer:
ZF
Manufacturer Part No:
DH2C-C5AA
Enrgtech Part No:
ET16787735
Warranty:
Manufacturer
£ 3.18
Checking for live stock
Actuator Type:
Button
Terminal Type:
Left Angle PCB
Contact Current Rating:
500 mA @ 30 V dc
Contact Configuration:
SPDT
Operating Force:
0.88 N
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+70°C
Contact Material:
Gold Plated Brass
Operating Temperature Range:
-25 → +70°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=46918&DisplayLogo=False
