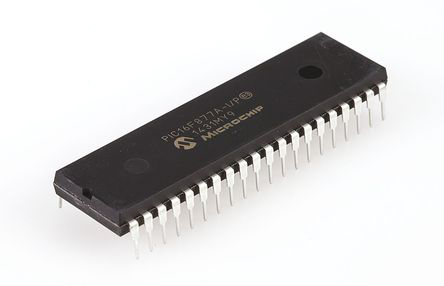

PIC16F873A/874A/876A/877A 8-Bit Flash Microcontrollers

Microchip , 8bit PIC, PIC16F Microcontroller, 20MHz, 14.3 kB, 256 B Flash, 40-Pin PDIP

Manufacturer:
Manufacturer Part No:
PIC16F877A-I/P
Enrgtech Part No:
ET13803408
Warranty:
Manufacturer
Checking for live stock
Family Name:
PIC16F
Package Type:
PDIP
Mounting Type:
Through Hole
Pin Count:
40
Device Core:
PIC
Data Bus Width:
8bit
Program Memory Size:
14.3 kB, 256 B
Maximum Frequency:
20MHz
RAM Size:
368 B
USB Channels:
0
Number of PWM Units:
2
Number of SPI Channels:
1
Number of UART Channels:
0
Number of USART Channels:
1
Number of I2C Channels:
1
Typical Operating Supply Voltage:
4 → 5.5 V
Number of CAN Channels:
0
ADCs:
8 x 10 bit
Maximum Operating Temperature:
+85 °C
Number of ADC Units:
1
Instruction Set Architecture:
RISC
Length:
52.45mm
Width:
14.22mm
Dimensions:
52.45 x 14.22 x 4.06mm
Pulse Width Modulation:
2 (10 bit) (CCP)
Minimum Operating Temperature:
-40 °C
Height:
4.06mm
Number of LIN Channels:
0
Number of Ethernet Channels:
0
Number of PCI Channels:
0
Program Memory Type:
Flash
