PIC16F610/616 8-Bit Flash Microcontrollers The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F610/616 family of microcontrollers is based upon Microchip’s Mid-Range core with a 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory, up to 128 bytes RAM and Data EEPROM of up to 128 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy. Microcontroller Features 20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Frequency Range 4 MHz or 8 MHz
11 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP) Peripherals 8 Channel 10-bit Analogue to Digital Converter (ADC) – PIC16F616 Model Only
Two Comparators
8-bit Timer – PIC16F610 x 1, PIC16F616 x 2
One 16-bit Timer

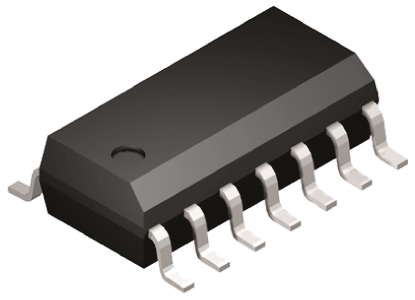

Microchip , 8bit PIC, PIC16F Microcontroller, 20MHz, 2048 words Flash, 14-Pin SOIC

Manufacturer:
Manufacturer Part No:
PIC16F616-I/SL
Enrgtech Part No:
ET13955297
Warranty:
Manufacturer
Checking for live stock
Family Name:
PIC16F
Package Type:
SOIC
Mounting Type:
Surface Mount
Pin Count:
14
Device Core:
PIC
Data Bus Width:
8bit
Program Memory Size:
2048 words
Maximum Frequency:
20MHz
RAM Size:
128 B
USB Channels:
0
Number of PWM Units:
1 x 10 bit
Number of SPI Channels:
0
Number of I2C Channels:
0
Number of UART Channels:
0
Typical Operating Supply Voltage:
2 → 5.5 V
Number of USART Channels:
0
Number of CAN Channels:
0
Number of ADC Units:
1
Length:
8.65mm
ADCs:
8 x 10 bit
Maximum Number of Ethernet Channels:
0
Instruction Set Architecture:
RISC
Maximum Operating Temperature:
+85 °C
Dimensions:
8.65 x 3.9 x 1.5mm
Width:
3.9mm
Height:
1.5mm
Number of LIN Channels:
0
Number of Ethernet Channels:
0
Pulse Width Modulation:
1 (10 bit) (ECCP)
Minimum Operating Temperature:
-40 °C
Program Memory Type:
Flash
Number of PCI Channels:
0
