PIC16F630/676 8-Bit Flash Microcontrollers The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F630/676 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 1.75 Kbytes program memory, up to 64 bytes RAM and Data EEPROM of 128 bytes. On board is an oscillator factory calibrated to ±1% accuracy. Microcontroller Features 20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
4 MHz Internal Oscillator
12 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Detect (BOD)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP) Peripherals 8 Channel 10-bit Analogue to Digital Converter (ADC) – PIC16F676 Only
One Comparator
One 8-bit Timer
One 16-bit Timer

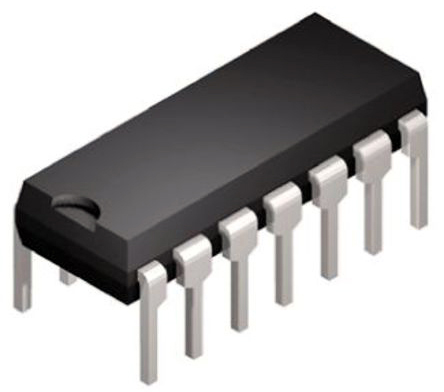

Microchip , 8bit PIC, PIC16F Microcontroller, 20MHz, 1024 x 14 words, 128 B Flash, 14-Pin PDIP

Manufacturer:
Manufacturer Part No:
PIC16F630-I/P
Enrgtech Part No:
ET14112100
Warranty:
Manufacturer
Checking for live stock
Family Name:
PIC16F
Package Type:
PDIP
Mounting Type:
Through Hole
Pin Count:
14
Device Core:
PIC
Data Bus Width:
8bit
Program Memory Size:
1024 x 14 words, 128 B
Maximum Frequency:
20MHz
RAM Size:
64 B
USB Channels:
0
Number of SPI Channels:
0
Typical Operating Supply Voltage:
2 → 5.5 V
Number of I2C Channels:
0
Number of USART Channels:
0
Number of UART Channels:
0
Number of CAN Channels:
0
Program Memory Type:
Flash
Number of PCI Channels:
0
Number of Ethernet Channels:
0
Instruction Set Architecture:
RISC
Height:
4.95mm
Width:
0.28in
Dimensions:
0.775 x 0.28 x 0.195in
Maximum Number of Ethernet Channels:
0
Length:
19.69mm
Maximum Operating Temperature:
+85 °C
Number of LIN Channels:
0
Minimum Operating Temperature:
-40 °C
